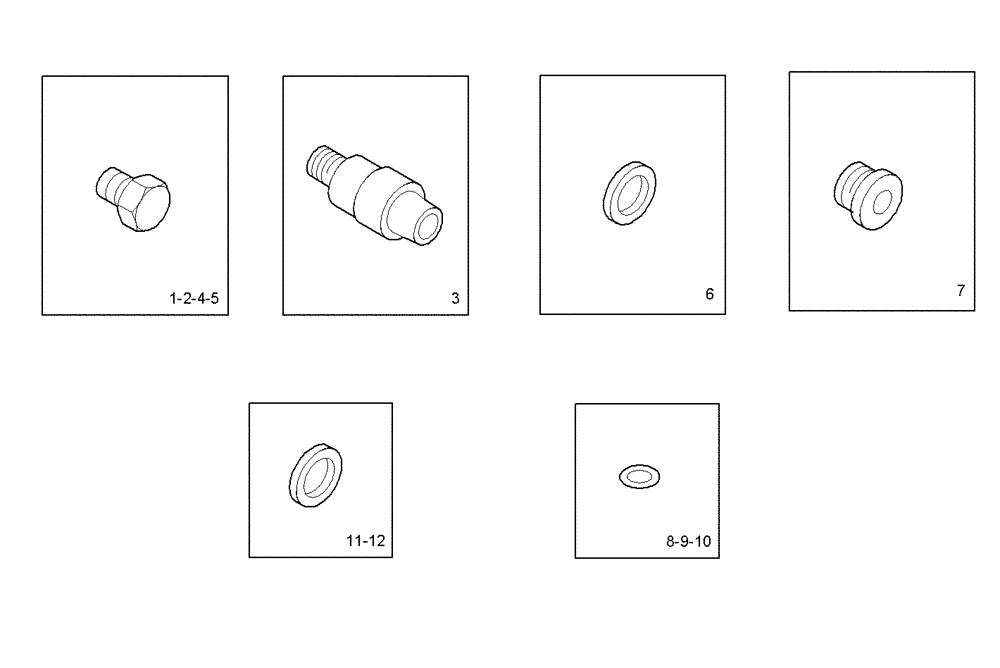

Запчасти Case IH F3AE0684N E907 (1712.012) - SENSORS [UP TO # 99284]

1

504084571

PLUG

THREADED PLUG

1шт.

2

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

LOCK PLUG, M14X1,5

2шт.

3

500346371

SENSOR

CHOCKED FILTER INDIC., FILTRO BLOW-BY

1шт.

4

16887515

PLUG

THREADED PLUG

1шт.

5

500337200

PLUG

THREADED PLUG

1шт.

6

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

1шт.

7

10300714

PLUG,M16 x 1.5 x 14

THREADED PLUG, M16X1,5

1шт.

8

14453181

O-RING,0.489" ID x 0.07" Width

O-RING

1шт.

9

500337199

O-RING

O-RING

1шт.

10

70933922

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

O-RING, dia=7,65 MM SP=1,78 MM

1шт.

11

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

SEAL GASKET, dia=12X20 MM SP=1,5 MM

1шт.

12

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

SEAL GASKET, dia=14X22 MM SP=1,5 MM

4шт.
