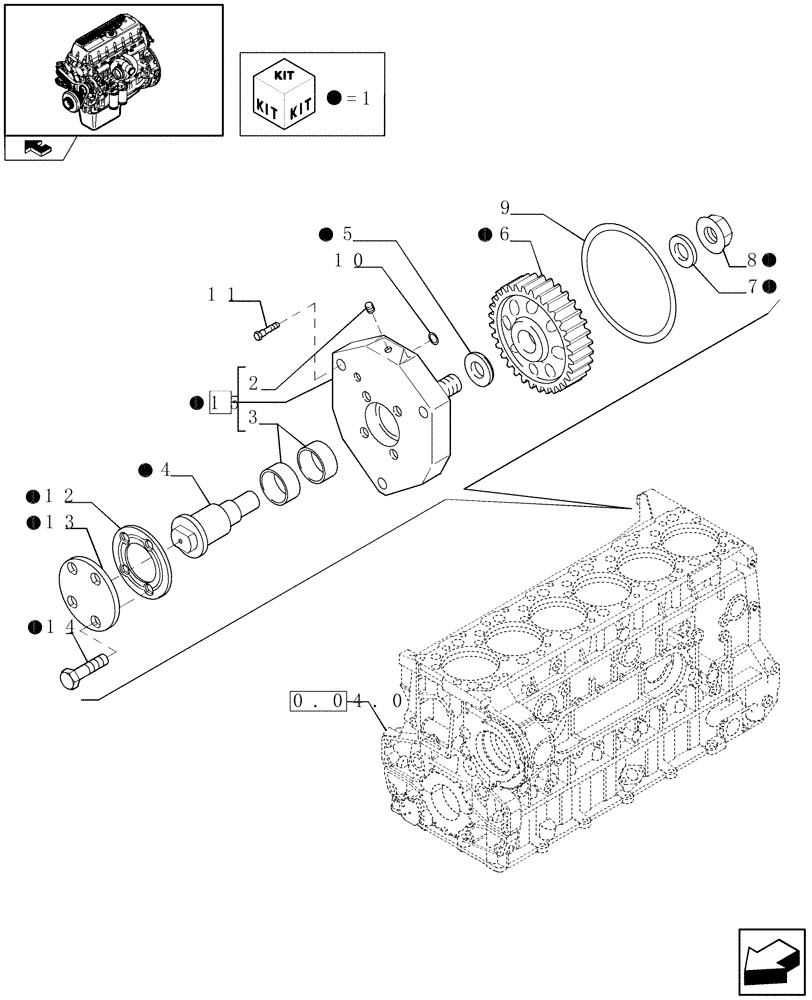

Запчасти Case IH F3AE0684N E907 (0.35.0) - AUXILIARY DRIVE GEAR & COVER (500387625)

1

500382578

SUPPORT

- ASSY

1шт.

2

98472270

PLUG

1шт.

3

4788087

BUSHING,36.57mm ID x 40.98mm OD x 17.2mm L

2шт.

4

504030275

PTO SHAFT

1шт.

5

500351319

LOCK WASHER

1шт.

6

500382573

GEAR

1шт.

7

500382574

LOCK WASHER

1шт.

8

17046231

NUT

1шт.

9

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

D=126.59 x 3.53 mm

1шт.

10

14456881

O-RING,0.362" ID x 0.103" Width

D=9.19 mm

1шт.

11

2853145

BOLT,Flng, M12 x 1.75 x 45mm

M12 x 45

3шт.

12

500355018

GASKET

1шт.

13

500355019

COVER

1шт.

14

2853674

SCREW,Hex, Flg Hd, M10 x 1.5 x 20mm

M10 x 20

4шт.

15

500353779

SUPPORT

- ASSY

1шт.
