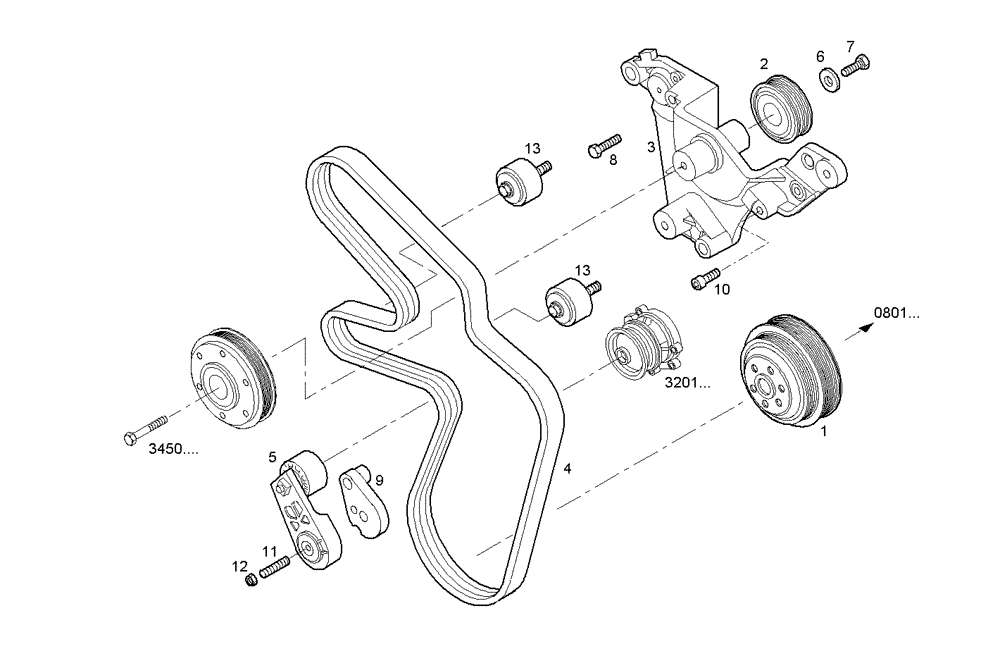

Запчасти Case IH F3AE0684M B903 (0843.043) - DRIVING PULLEY

1

504077386

PULLEY

CRANKSHAFT PULLEY

1шт.

2

504079721

PULLEY

PULLEY

1шт.

3

504078323

BODY

SUPPORT

1шт.

4

87282333

V-BELT,28.28 mm W x 2515.00 mm L

BELT

1шт.

5

504078064

BELT TENSIONER

BELT TENSIONER

1шт.

6

504077389

WASHER

WASHER

1шт.

7

16676635

BOLT

HEXAGON BOLT, M10X60 MM

1шт.

8

16673835

BOLT,Hex, M8 x 30mm

HEXAGON BOLT, M8X30 MM

1шт.

9

504079738

SPACER

SPACING BAR

1шт.

10

16711235

BOLT,M10 x 1.25 x 70mm

SCREW

5шт.

11

504079727

STUD

STUD

1шт.

12

16984335

BOLT

NUT, M10

1шт.

13

504078065

IDLER

BELT TENSIONER

2шт.
