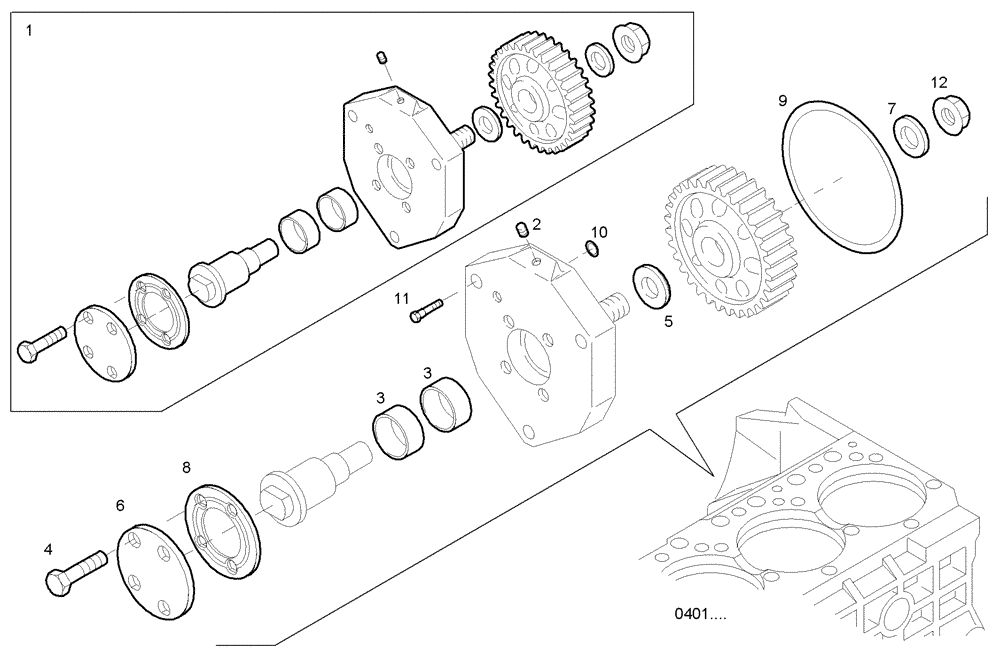

Запчасти Case IH F3AE0684K E904 (3500.035) - POWER TAKE OFF

1

500382578

SUPPORT

POWER TAKE OFF, ASSY

1шт.

2

504051236

PLUG,Threaded, 1/8"

THREADED PLUG, DIAM=1/8"

1шт.

3

4788087

BUSHING,36.57mm ID x 40.98mm OD x 17.2mm L

BUSH, VANDERVELL

2шт.

4

18139424

SCREW,Hex, M10 x 20mm

HEXAGON BOLT, M10X20 MM

4шт.

5

500351319

LOCK WASHER

WASHER

1шт.

6

500355019

COVER

COVER

1шт.

7

500382574

LOCK WASHER

WASHER

1шт.

8

500355018

GASKET

FLAT ENGINE GASKET

1шт.

9

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

O-RING, dia=126,59 MM SP=3,53 MM

1шт.

10

14456881

O-RING,0.362" ID x 0.103" Width

O-RING, dia=9,19 MM

1шт.

11

16678135

SCREW,M12 x 45mm

HEXAGON BOLT, M12X45 MM

3шт.

12

17046231

NUT

NUT, M20

1шт.
