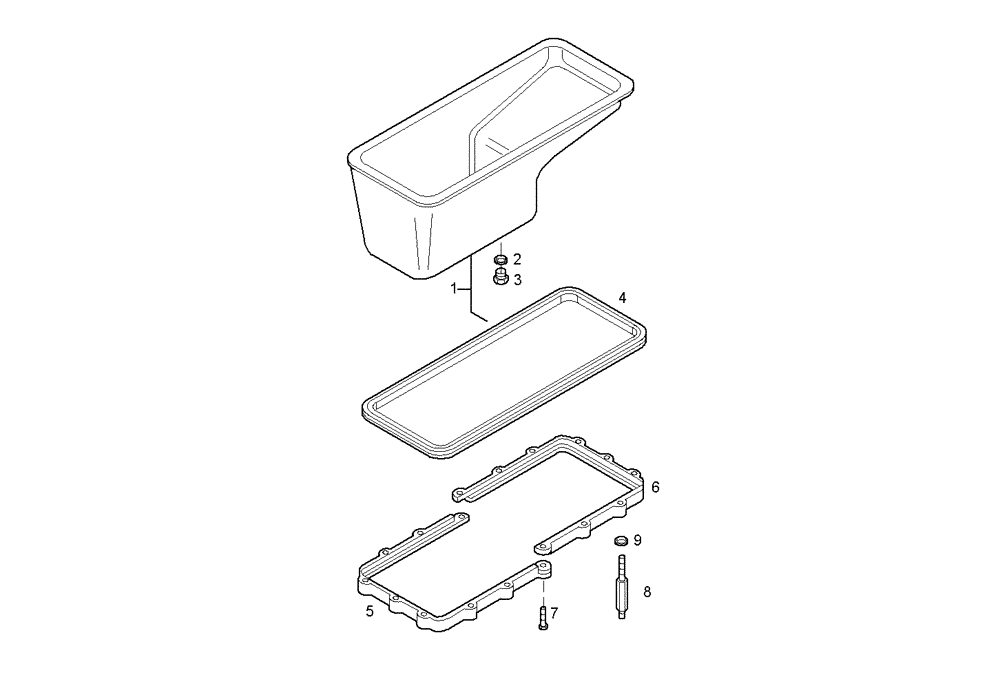

Запчасти Case IH F3AE0684K E904 (0420.224) - OIL SUMP

1

500336615

ENGINE OIL PAN

OIL SUMP, ASSY

1шт.

2

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

SEAL GASKET, dia=22X30 MM SP=1,5 MM

1шт.

3

10305171

PLUG,M22 x 1.5 x 21

THREADED PLUG, M22X1,5

1шт.

4

504028001

GASKET

OIL SUMP GASKET

1шт.

5

99468498

SPACER

SPACING BAR

1шт.

6

99468497

SPACER

SPACING BAR

1шт.

7

16587524

SCREW,M10 x 45mm

HEXAGON BOLT, M10X45 MM

12шт.

8

504005577

PROP

SPACING BAR

4шт.

9

17095024

WASHER

SPRING WASHER, dia=10X18 MM

4шт.
