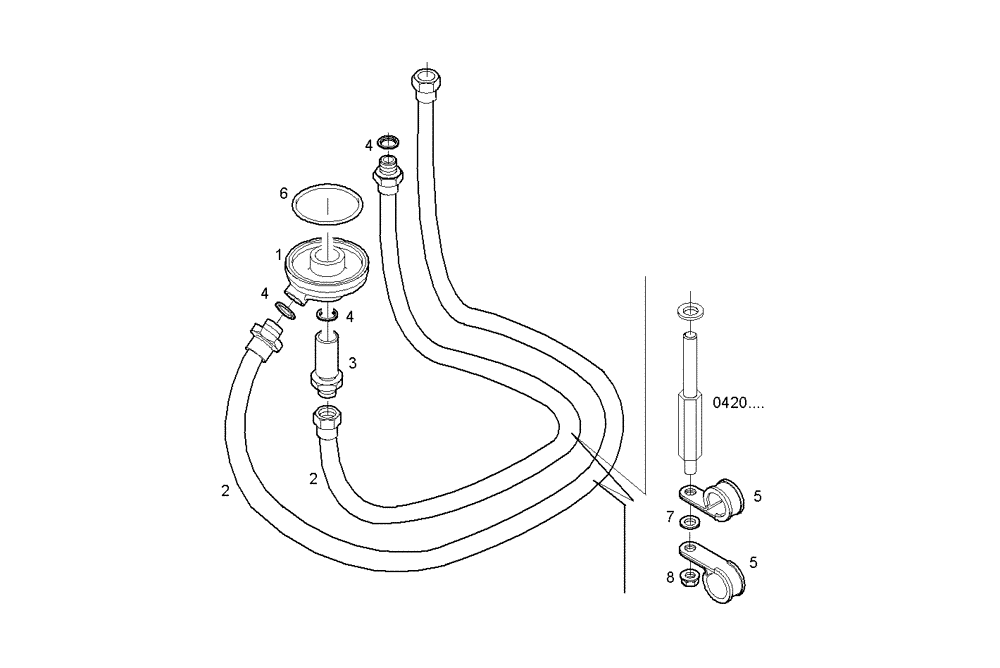

Запчасти Case IH F3AE0684J B902 (3026.002) - LUBE OIL LINES

1

504005569

SUPPORT

SUPPORT

1шт.

2

504002665

HOSE

HOSE

2шт.

3

500382730

FITTING

PIPE SOCKET

1шт.

4

99434480

SEAL

SEAL GASKET, dia=30X40 MM

3шт.

5

17317390

CLAMP

FASTENING BRACKET, dia=28 MM x M8

8шт.

6

17291281

GASKET,94.84mm ID x 3.53mm Thk

O-RING, dia=94,84 MM SP=3,53 MM

1шт.

7

10519624

WASHER,8.15mm ID x 17mm OD x 2mm Thk

WASHER, dia=8X16 MM

5шт.

8

17044721

NUT

HEXAGON NUT, M8X1,25

5шт.
