Запчасти Case IH F3AE0684J B902 (3022.003) - HOUSING OIL

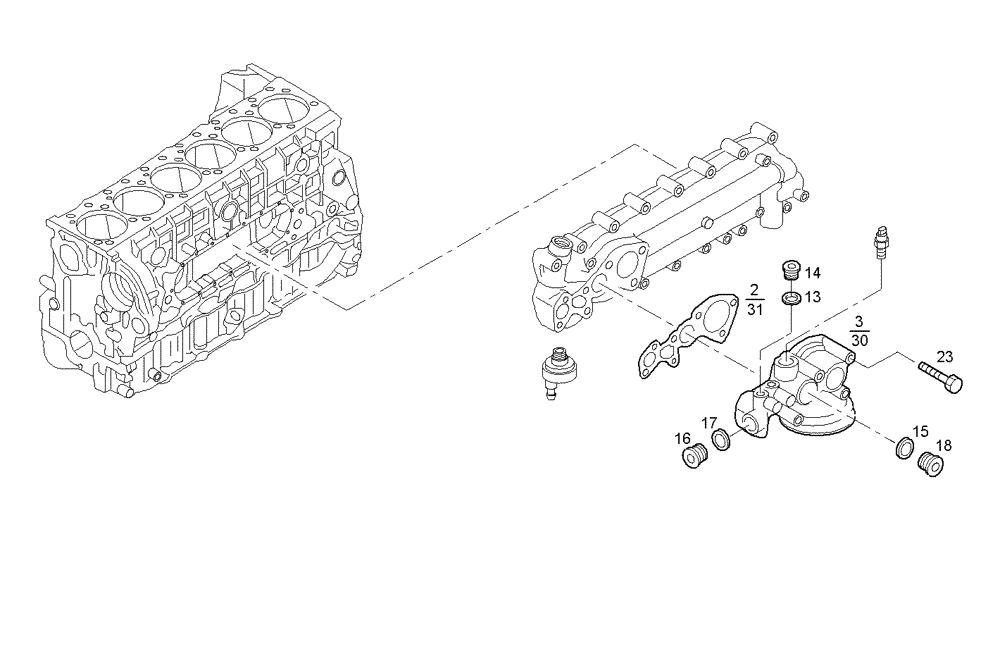

Схема запчастей Case IH F3AE0684J B902 - (3022.003) - HOUSING OIL

Артикул

Название

Примечание

Количество

2

99442502

GASKET

FLAT ENGINE GASKET, UP TO # 13702

1шт.

3

500354237

FILTER HEAD

OIL FILTER SUPPORT, UP TO # 13702

1шт.

13

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

1шт.

14

10300714

PLUG,M16 x 1.5 x 14

THREADED PLUG, M16X1,5

1шт.

15

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

SEAL GASKET, dia=35 MM

1шт.

16

10278301

PLUG,M28 x 1.5 x 11, Brass

LOCK PLUG, M28X1,5

1шт.

17

99432291

GASKET,28mm ID

SEAL GASKET, dia=28 MM

1шт.

18

16993711

PLUG,M35 x 1.5

THREADED PLUG, M35X1,5

1шт.

23

2852267

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

HEXAGON BOLT, M8X90 MM

5шт.

30

504013552

SUPPORT

OIL FILTER SUPPORT, FROM # 13703

1шт.

31

504013562

GASKET

GASKET, FROM # 13703

1шт.

Выбрано товаров: 11
