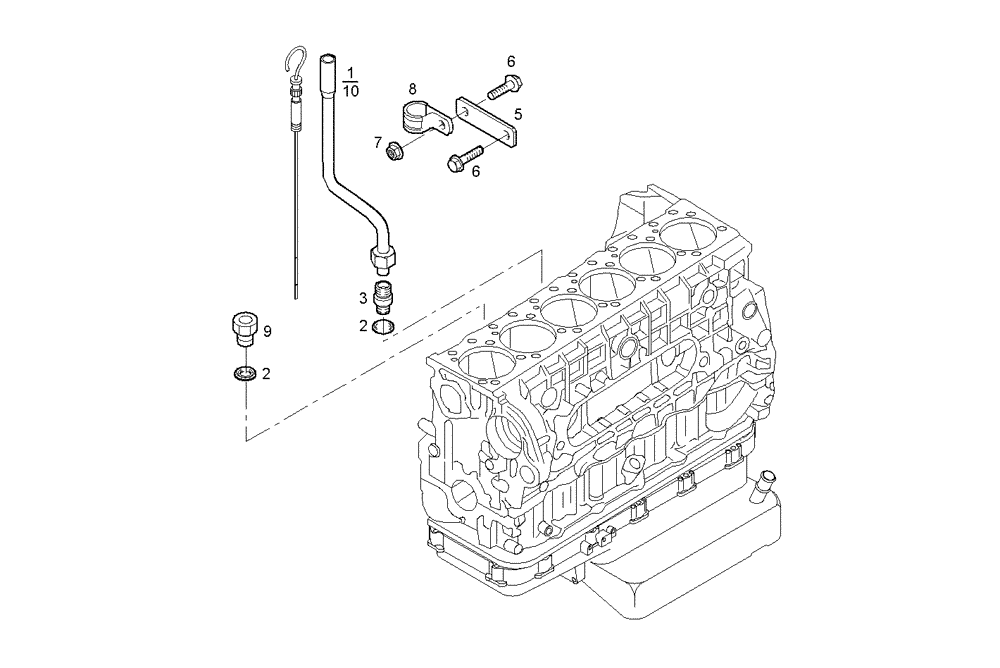

Запчасти Case IH F3AE0684J B902 (2712.014) - OIL DIPSTICK PIPE

1

504012076

RIGID TUBE

OIL LEVEL TUBE, UP TO # 72654

1шт.

2

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

SEAL GASKET, dia=18X26 MM SP=1,5 MM

3шт.

3

504023175

HYD CONNECTOR

THREADED UNION, M18X1,5 - M24X1

1шт.

5

504066745

BRACKET

RETAINER

1шт.

6

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X1,25X16 MM

2шт.

7

2852389

FLANGE NUT

HEXAGON NUT, M8

1шт.

8

17316699

CLAMP

PIPE CLIP, dia=14 MM

1шт.

9

16992515

PLUG

THREADED PLUG, M18X1,5

2шт.

10

504117963

TUBE

OIL LEVEL TUBE, FROM # 72655

1шт.
