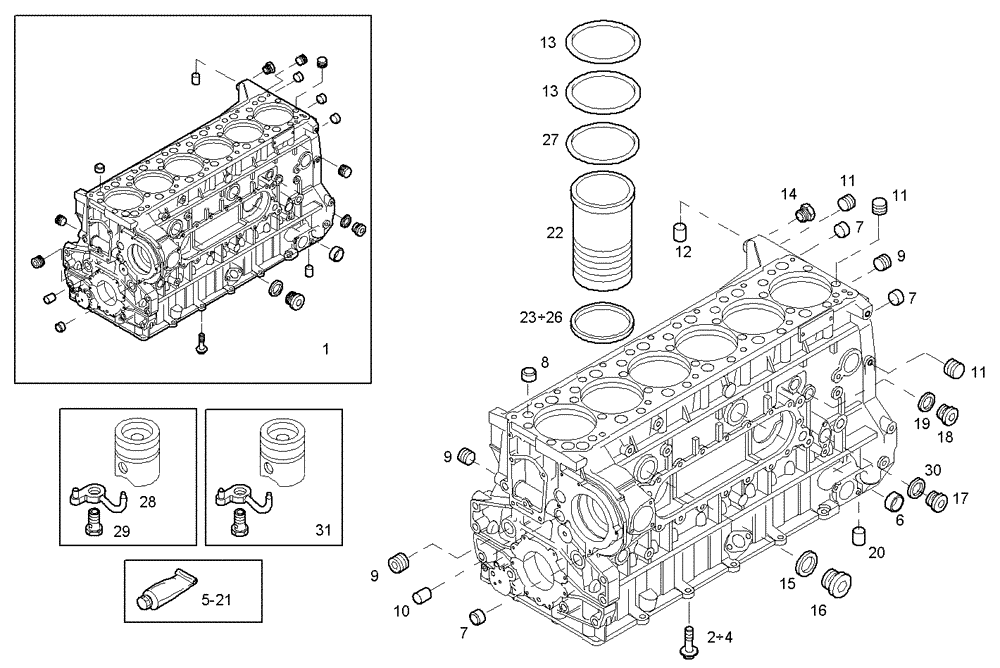

Запчасти Case IH F3AE0684J B902 (0400.163) - CRANKCASE

1

504079750

CYLINDER BLOCK

CRANKCASE, ASSY

1шт.

2

99430335

SCREW

HEXAGON BOLT

14шт.

3

99432869

SCREW

HEXAGON BOLT, M12X125 MM

25шт.

4

99433863

SCREW

HEXAGON BOLT, M12X58 MM

1шт.

5

1903673

SEALANT

ADHESIVE/STICKER, LOCTITE

1шт.

6

16991370

PLUG

LOCK PLUG, dia=45 MM

2шт.

7

16990870

PLUG

LOCK PLUG, dia=28 MM

3шт.

8

16990570

PLUG

LOCK PLUG, dia=20 MM

6шт.

9

98474481

PLUG

THREADED PLUG

3шт.

10

98475100

PLUG

THREADED PLUG, R3/4x12

1шт.

11

98472271

PLUG

THREADED PLUG

3шт.

12

500368916

DOWEL

OIL NOZZLE

1шт.

13

99456554

GASKET

O-RING

12шт.

14

99433597

SCREW

THREADED PLUG, M12X16 MM

3шт.

15

99469382

SEAL

SEAL GASKET, D=42x50x2

1шт.

16

4665029

PLUG

LOCK PLUG, M42X1,5

1шт.

17

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

LOCK PLUG, M12X1,25

1шт.

18

16992411

PLUG

THREADED PLUG, M16X1,5

3шт.

19

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

3шт.

20

99467554

DOWEL

DOWEL PIN, dia=14 MM

4шт.

21

93162429

ADHESIVE/STICKER, LOCTITE

1шт.

22

500338224

LINER, ENGINE CYLIND

CYLINDER LINER, STANDARD

6шт.

23

99432876

GASKET

SPAC.RING CYL.LIN., SP=0,08 MM

6шт.

24

99432875

SEAL

SPAC.RING CYL.LIN., SP=0,1 MM

6шт.

25

99432873

GASKET

SPAC.RING CYL.LIN., SP=0,12 MM

6шт.

26

500378984

GASKET

SPAC.RING CYL.LIN., SP=0,14 MM

6шт.

27

99456553

GASKET

O-RING

6шт.

28

99435597

LUBE OIL NOZZLE

OIL NOZZLE, UP TO # 85296

6шт.

29

99474718

BANJO BOLT

SCREW CONNECTOR, M12X1,5, UP TO # 85296

6шт.

30

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

SEAL GASKET, dia=12X20 MM SP=1,5 MM

1шт.

31

504199599

LUBE OIL NOZZLE

OIL NOZZLE, FROM # 85297

6шт.
