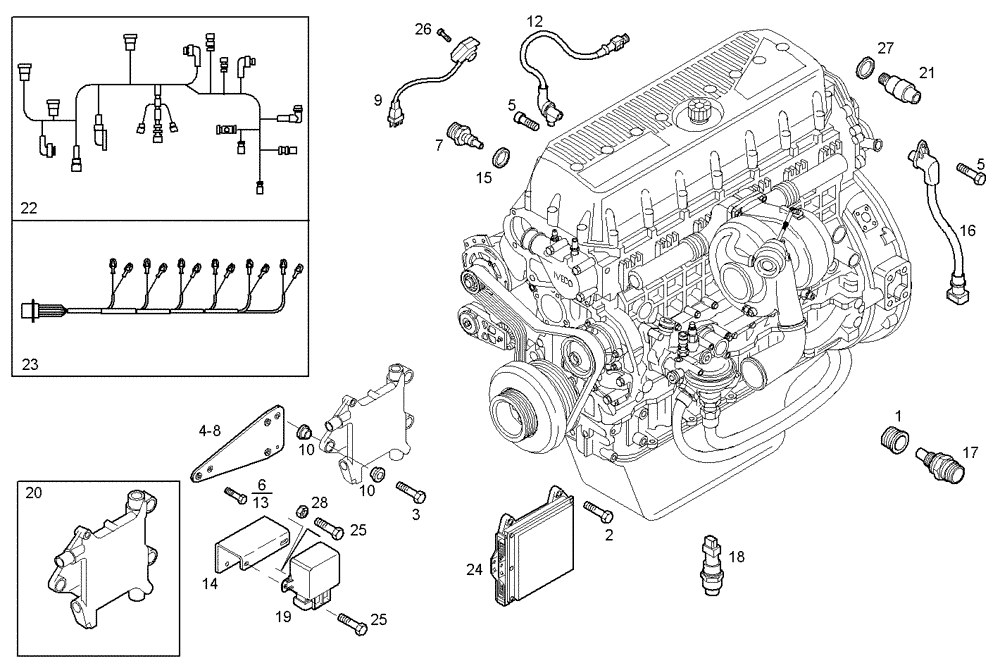

Запчасти Case IH F3AE0684J B902 (1700.019) - ELECTRONIC CONTROL UNIT [UP TO # 47025]

1

504035912

ADAPTER

THREADED UNION

1шт.

2

16673934

SCREW,M8 x 35mm

HEXAGON BOLT, M8X35 MM

4шт.

3

16586624

SCREW,M8 x 35mm

HEXAGON BOLT, M8X35 MM

3шт.

4

500398687

ADAPTER

SUPPORT, UP TO # 86373

1шт.

5

16688924

SCREW,M6 x 10mm

CYLIND-HEAD SCREW, M6X10 MM

4шт.

6

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

HEXAGON BOLT, M8X1,25X18 MM

1шт.

7

98412656

TEMPERATURE SENDER

TEMP. TRANSMITTER

1шт.

8

504079747

BRACKET

RETAINER, FROM # 86374

1шт.

9

500360579

SENDER UNIT

SENSOR, Pressure

1шт.

10

98498817

ISOLATOR

DOWEL

6шт.

12

99450797

SENDER UNIT

SENSOR, camshaft.

1шт.

13

16586824

SCREW,M8 x 45mm

HEXAGON BOLT, M8X1,25X45 MM

3шт.

14

504036533

SUPPORT

SUPPORT

1шт.

15

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

1шт.

16

82017874

SENSOR

SENSOR, crankshaft.

1шт.

17

82017881

SENSOR

TEMP. TRANSMITTER, PRESS. & TEMPER.

1шт.

18

500386057

SENDER UNIT

TEMP. TRANSMITTER

1шт.

19

86619908

RELAY,12V, 150A

RELAY

1шт.

20

500371990

SUPPORT

SUPPORT, ASSY

1шт.

21

500346371

SENSOR

CHOCKED FILTER INDIC., FILTRO BLOW-BY

1шт.

22

504066998

WIRE HARNESS

SET OF WIRING

1шт.

23

500347901

WIRE HARNESS

WIRE/CABLE, FOR INJECTORS

1шт.

24

500365533

ECU

ELECTR.CONTR.UNIT, E.C.U.

1шт.

25

16585724

BOLT,M6 x 16mm, Cl 8.8

HEXAGON BOLT, M6X16 MM

4шт.

26

16597224

SCREW,Hex, M6 x 18mm, Cl 8.8

HEXAGON BOLT, M6X18 MM

2шт.

27

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

SEAL GASKET, dia=14X22 MM SP=1,5 MM

1шт.

28

17044621

NUT

HEXAGON NUT, M6

2шт.

29

504079747

BRACKET

RETAINER, FROM # 86374

1шт.

30

16586824

SCREW,M8 x 45mm

HEXAGON BOLT, M8X1,25X45 MM, FROM # 86374

1шт.
