Запчасти Case IH F3AE0684J B902 (1700.011) - ELECTRONIC CONTROL UNIT [FROM # 47026]

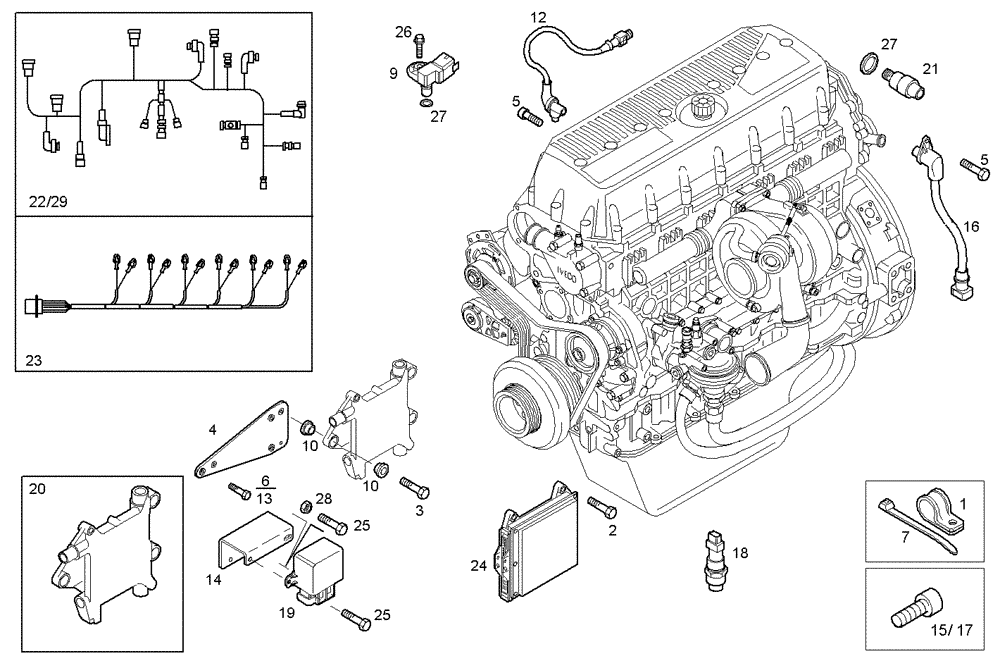

Схема запчастей Case IH F3AE0684J B902 - (1700.011) - ELECTRONIC CONTROL UNIT [FROM # 47026]

Артикул

Название

Примечание

Количество

1

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

PIPE CLIP

1шт.

2

16585724

BOLT,M6 x 16mm, Cl 8.8

HEXAGON BOLT, M6X16 MM

4шт.

3

16586624

SCREW,M8 x 35mm

HEXAGON BOLT, M8X35 MM

6шт.

4

504079747

BRACKET

RETAINER

1шт.

5

16688925

BOLT,M6 x 10mm

CYLIND-HEAD SCREW, M6X10

2шт.

6

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

HEXAGON BOLT, M8X1,25X18 MM

1шт.

7

42099097

CABLE TIE

CABLE STRAP

6шт.

9

504073323

SENSOR

SENSOR, AIR PRESS. & TEMPER.

1шт.

10

98498817

ISOLATOR

DOWEL

6шт.

12

99450797

SENDER UNIT

SENSOR, camshaft.

1шт.

13

16586824

SCREW,M8 x 45mm

HEXAGON BOLT, M8X1,25X45 MM

2шт.

14

504036533

SUPPORT

SUPPORT

1шт.

15

2853970

BOLT

HEXAGON BOLT, M6X10 MM

1шт.

16

82017874

SENSOR

SENSOR, crankshaft.

1шт.

17

16689424

SCREW,M6 x 30mm

SOCKET-HEAD SCREW, M6X30 MM

4шт.

18

500386057

SENDER UNIT

TEMP. TRANSMITTER

1шт.

19

86619908

RELAY,12V, 150A

RELAY

1шт.

20

500371990

SUPPORT

SUPPORT, ASSY

1шт.

21

500346371

SENSOR

CHOCKED FILTER INDIC., FILTRO BLOW-BY

1шт.

22

504074628

ELECTRIC CABLE

SET OF WIRING, UP TO # 62976

1шт.

23

504009221

WIRE HARNESS

WIRE/CABLE, FOR INJECTORS

1шт.

24

500365533

ECU

ELECTR.CONTR.UNIT, E.C.U.

1шт.

25

16585724

BOLT,M6 x 16mm, Cl 8.8

HEXAGON BOLT, M6X16 MM

4шт.

26

16597224

SCREW,Hex, M6 x 18mm, Cl 8.8

HEXAGON BOLT, M6X18 MM

2шт.

27

42546555

O-RING

O-RING

1шт.

28

17044621

NUT

HEXAGON NUT, M6

2шт.

29

504084159

ELECTRIC CABLE

SET OF WIRING, FROM # 62977

1шт.

Выбрано товаров: 27
