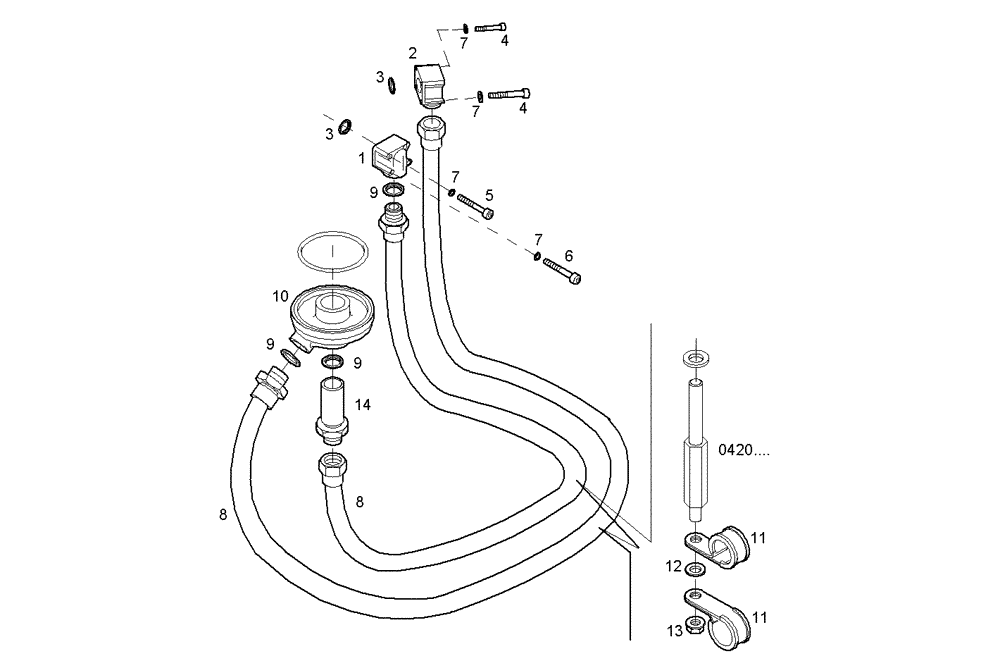

Запчасти Case IH F3AE0684J B901 (3026.001) - LUBE OIL LINES

1

504005572

ELBOW

PIPE SOCKET

1шт.

2

98481998

FITTING

ELBOW COUPLING

1шт.

3

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

O-RING, 2,62x23,47

2шт.

4

16689724

SCREW,M6 x 45mm

CYLIND-HEAD SCREW, M6X45 MM

2шт.

5

16689824

SCREW,M6 x 50mm

CYLIND-HEAD SCREW, M6X50 MM

2шт.

6

16689924

SCREW

CYLIND-HEAD SCREW

4шт.

7

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

WASHER, dia=6X12 MM

8шт.

8

504002665

HOSE

HOSE

2шт.

9

99434480

SEAL

SEAL GASKET, dia=30X40 MM

2шт.

10

504005569

SUPPORT

SUPPORT

1шт.

11

17317390

CLAMP

FASTENING BRACKET, dia=28 MM x M8

8шт.

12

10519624

WASHER,8.15mm ID x 17mm OD x 2mm Thk

WASHER, dia=8X16 MM

5шт.

13

17044721

NUT

HEXAGON NUT, M8X1,25

5шт.

14

500382730

FITTING

PIPE SOCKET

1шт.
