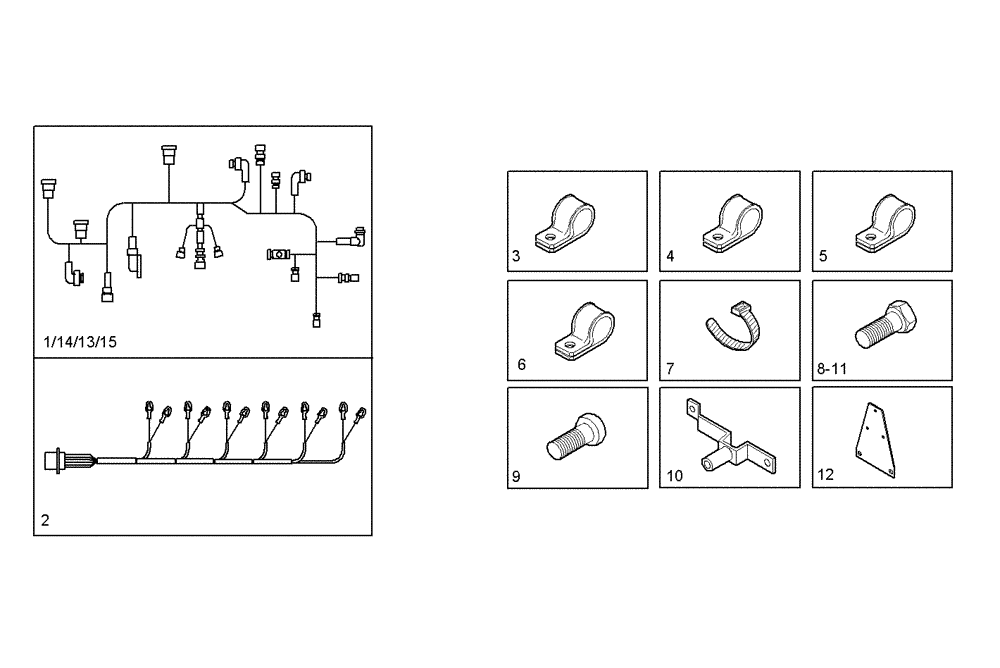

Запчасти Case IH F3AE0684G B005 (5690.060) - CABLES

1

504074628

ELECTRIC CABLE

SET OF WIRING, FROM # 51405

1шт.

2

504009221

WIRE HARNESS

WIRE/CABLE, FOR INJECTORS

1шт.

3

17315490

CLAMP

PIPE CLIP

1шт.

4

17310001

CLAMP

FASTENING BRACKET, dia=4 MM

1шт.

5

17310401

CLAMP

FASTENING BRACKET, dia=8 MM

3шт.

6

17310501

CLAMP

FASTENING BRACKET, dia=10 MM

1шт.

7

42099097

CABLE TIE

CABLE STRAP

1шт.

8

11612224

SCREW

HEXAGON BOLT, M6X12 MM

5шт.

9

16689424

SCREW,M6 x 30mm

SOCKET-HEAD SCREW, M6X30 MM

4шт.

10

504020897

BRACKET

FASTENING BRACKET

1шт.

11

16592225

BOLT,M8 x 55mm

HEXAGON BOLT, M8X55 MM

1шт.

12

504067009

BRACKET

RETAINER

1шт.

13

504056457

ELECTRIC CABLE

SET OF WIRING, UP TO # 51404

1шт.

14

504074628

ELECTRIC CABLE

SET OF WIRING, UP TO # 62976

1шт.

15

504084159

ELECTRIC CABLE

SET OF WIRING, FROM # 62977

1шт.
