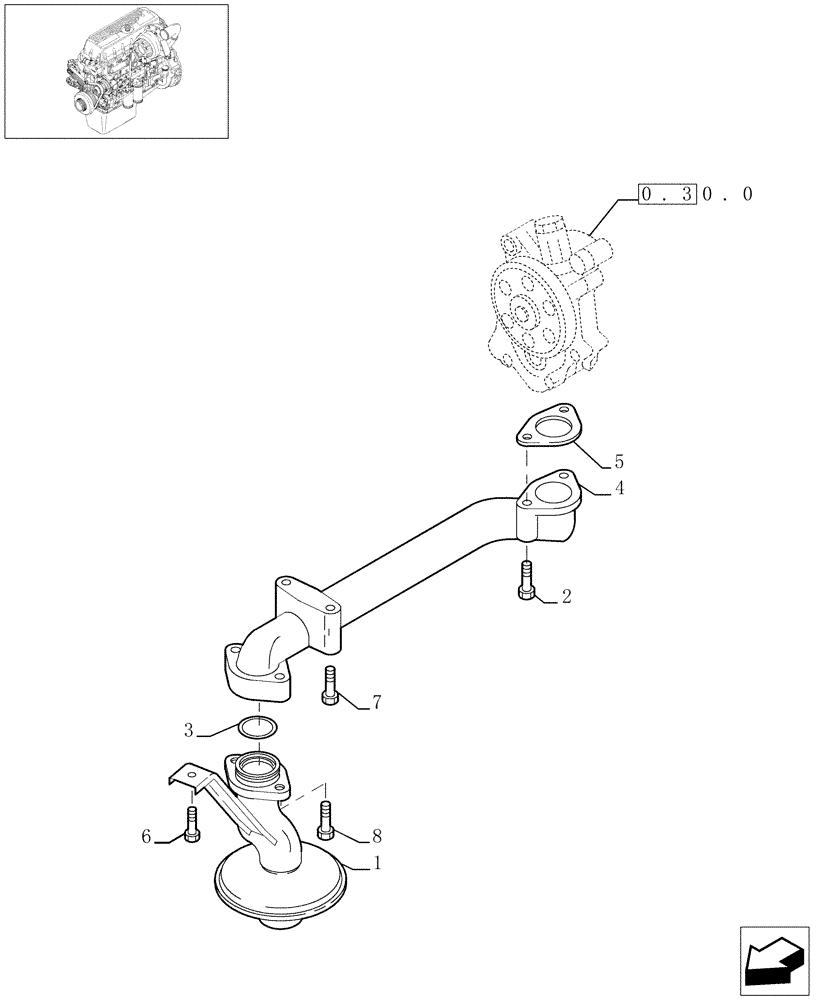

Запчасти Case IH F3AE0684G B004 (0.30.5[01]) - OIL PUMP PIPING (500387388)

1

500361099

RIGID TUBE

1шт.

2

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

2шт.

3

70925919

O-RING,-222, Cl 7, 1.484" ID x .139" Thk

D=37.69X3.53 mm

1шт.

4

99468495

RIGID TUBE

1шт.

5

500343518

GASKET

1шт.

6

16592224

SCREW,M8 x 55mm

M8X55 mm

2шт.

7

16592324

BOLT,Hex, M8 x 60mm

M8 x 40

2шт.

8

2852247

BOLT,Hex, M8 x 1.25 x 30mm

M8X30 mm

2шт.
