Запчасти Case IH F3AE0684G B003 (3100.114) - OIL - WATER HEAT EXCHANGER

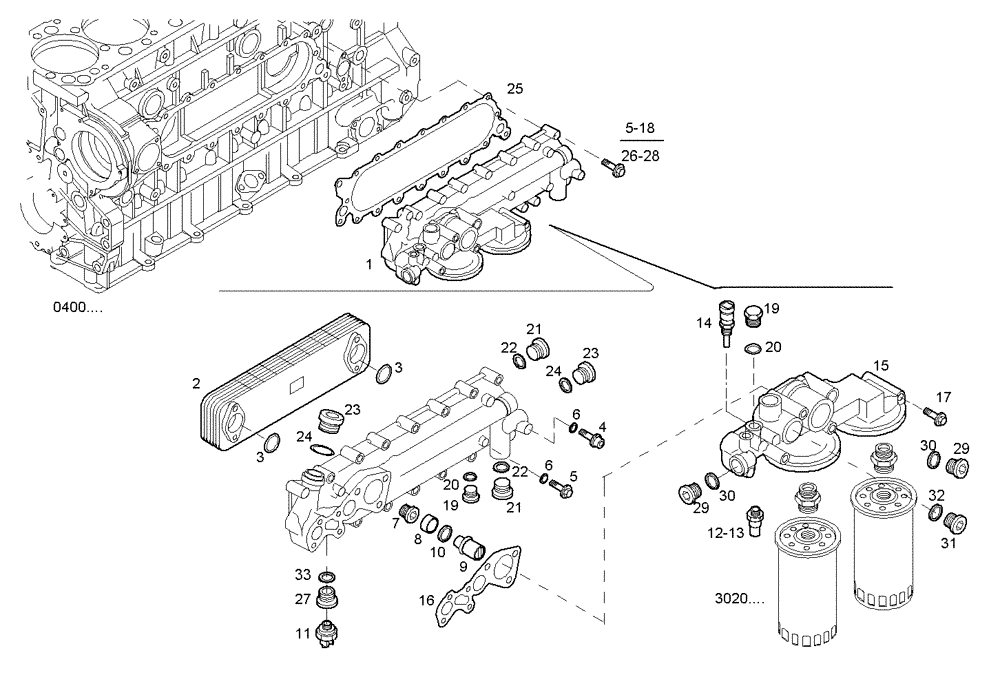

Схема запчастей Case IH F3AE0684G B003 - (3100.114) - OIL - WATER HEAT EXCHANGER

Артикул

Название

Примечание

Количество

1

504066209

HEAT EXCHANGER

OIL/WATER HEAT EXCHANGER

1шт.

2

99434989

HEAT EXCHANGER

OIL COOLER

1шт.

3

14459081

O-RING,1.737" ID x 0.103" Width

O-RING, dia=44,12 MM SP=2,62 MM

1шт.

4

16586625

BOLT,M8 x 35mm

HEXAGON BOLT, M8X35 MM

3шт.

5

16586925

BOLT,M8 x 50mm

HEXAGON BOLT, M8X50 MM

2шт.

6

98474303

WASHER,8mm ID x 14mm OD x 2.3mm Thk

WASHER, dia=8X14 MM SP=2,3 MM

4шт.

7

99433799

PLUG

THREADED PLUG, M32X1,5

1шт.

8

99433798

SPACER

SPACING BAR, dia=28 MM

1шт.

9

98498322

THERMOSTAT

VALVE

1шт.

10

98494952

GASKET,35mm ID x 1.5mm Thk

GASKET, M35X1,5

1шт.

11

500377533

SENDER UNIT

SENSOR, Pressure

1шт.

12

98445111

SWITCH

PRESSURE SWITCH, BORLETTI

1шт.

13

98442879

SWITCH

PRESSURE SWITCH, SIPEA

1шт.

14

82017881

SENSOR

TEMP. TRANSMITTER, PRESS. & TEMPER.

1шт.

15

504066210

HEAD

OIL FILTER SUPPORT

1шт.

16

504015752

GASKET

GASKET

1шт.

17

16592324

BOLT,Hex, M8 x 60mm

HEXAGON BOLT, M8X60 MM

4шт.

18

2852267

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

HEXAGON BOLT, M8X90 MM

2шт.

19

16992411

PLUG

THREADED PLUG, M16X1,5

2шт.

20

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

2шт.

21

16993711

PLUG,M35 x 1.5

THREADED PLUG, M35X1,5

2шт.

22

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

SEAL GASKET, dia=35 MM

2шт.

23

10278301

PLUG,M28 x 1.5 x 11, Brass

LOCK PLUG, M28X1,5

2шт.

24

99432291

GASKET,28mm ID

SEAL GASKET, dia=28 MM

2шт.

25

98497873

GASKET

FLAT ENGINE GASKET

1шт.

26

16586725

BOLT,Hex, M8 x 1.25 x 40mm

HEXAGON BOLT, M8X1.25X40 MM

14шт.

27

500356858

ADAPTER

THREADED UNION

1шт.

28

504064192

BOLT

HEXAGON BOLT, M8X130

2шт.

29

16993611

PLUG

THREADED PLUG, M32X1,5

2шт.

30

99469379

LOCK WASHER

WASHER, D=32X42X2

2шт.

31

10304611

PLUG

LOCK PLUG, M24X1,5

1шт.

32

99489023

LOCK WASHER

SPRING WASHER, D=24X33X1,5

1шт.

33

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

SEAL GASKET, dia=14X22 MM SP=1,5 MM

1шт.

Выбрано товаров: 33
