Запчасти Case IH F3AE0684G B003 (3010.183) - LUBE OIL LINES

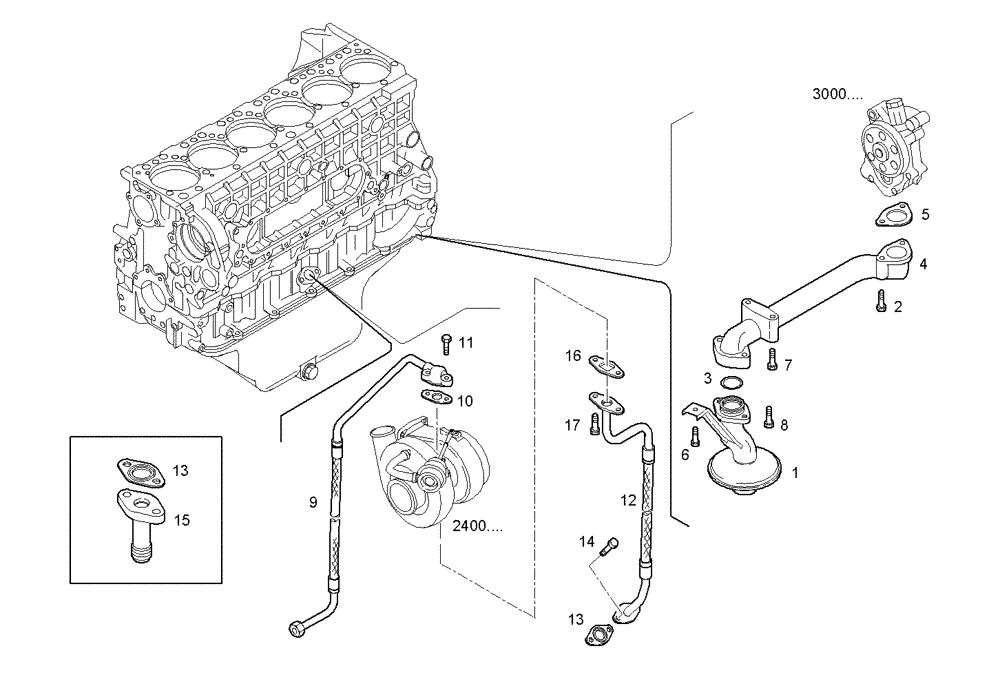

Схема запчастей Case IH F3AE0684G B003 - (3010.183) - LUBE OIL LINES

Артикул

Название

Примечание

Количество

1

500361099

RIGID TUBE

SUCTION STRAINER

1шт.

2

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X16 MM

2шт.

3

70925919

O-RING,-222, Cl 7, 1.484" ID x .139" Thk

O-RING, dia=37,69 MM SP=3,53 MM

1шт.

4

99468495

RIGID TUBE

OIL LINE

1шт.

5

500343518

GASKET

FLAT ENGINE GASKET

1шт.

6

16592225

BOLT,M8 x 55mm

HEXAGON BOLT, M8X55 MM

2шт.

7

16592324

BOLT,Hex, M8 x 60mm

HEXAGON BOLT, M8X60 MM

2шт.

8

16673835

BOLT,Hex, M8 x 30mm

HEXAGON BOLT, M8X30 MM

2шт.

9

504037360

HOSE

OIL LINE

1шт.

10

61318303

GASKET

GASKET

1шт.

11

16586625

BOLT,M8 x 35mm

HEXAGON BOLT, M8X35 MM

2шт.

12

504013539

RETURN PIPE

OIL LINE

1шт.

13

99475979

GASKET

FLAT ENGINE GASKET

2шт.

14

16586325

BOLT,Hex, M8 x 20mm, Cl 8.8

HEXAGON BOLT, M8X20 MM

2шт.

15

500333923

FLANGE

FLANGED SOCKET

1шт.

16

98412509

GASKET,0.8mm Thk

FLAT ENGINE GASKET

1шт.

17

16673735

BOLT,Hex, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM

2шт.

Выбрано товаров: 17
