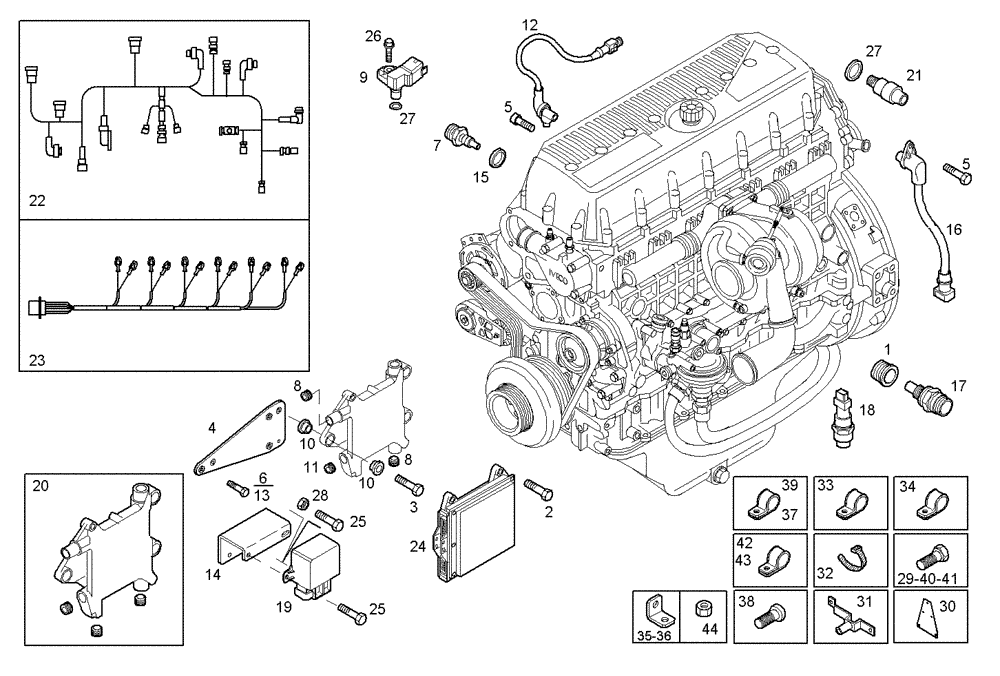

Запчасти Case IH F3AE0684G B003 (1700.020) - ELECTRONIC CONTROL UNIT

1

504035912

ADAPTER

THREADED UNION

1шт.

2

16586625

BOLT,M8 x 35mm

HEXAGON BOLT, M8X35 MM

6шт.

3

16586825

BOLT,Hex, M8 x 1.25 x 45mm

HEXAGON BOLT, M8X1.25X45 MM

5шт.

4

500398687

ADAPTER

SUPPORT, UP TO # 86373

1шт.

5

16688925

BOLT,M6 x 10mm

CYLIND-HEAD SCREW, M6X10

4шт.

6

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

HEXAGON BOLT, M8X1,25X18 MM

1шт.

7

98412656

TEMPERATURE SENDER

TEMP. TRANSMITTER

1шт.

8

98474481

PLUG

THREADED PLUG

2шт.

9

504073323

SENSOR

SENSOR, AIR PRESS. & TEMPER.

1шт.

10

98498817

ISOLATOR

DOWEL

6шт.

11

99430692

PLUG

THREADED PLUG, 1/2''

2шт.

12

99450797

SENDER UNIT

SENSOR, camshaft.

1шт.

13

16586824

SCREW,M8 x 45mm

HEXAGON BOLT, M8X1,25X45 MM

2шт.

14

504036533

SUPPORT

SUPPORT

1шт.

15

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

1шт.

16

82017874

SENSOR

SENSOR, crankshaft.

1шт.

17

82017881

SENSOR

TEMP. TRANSMITTER, PRESS. & TEMPER.

1шт.

18

500386057

SENDER UNIT

TEMP. TRANSMITTER

1шт.

19

86619908

RELAY,12V, 150A

RELAY

1шт.

20

500371990

SUPPORT

SUPPORT, ASSY

1шт.

21

500346371

SENSOR

CHOCKED FILTER INDIC., FILTRO BLOW-BY

1шт.

22

504056457

ELECTRIC CABLE

SET OF WIRING

1шт.

23

504009221

WIRE HARNESS

WIRE/CABLE, FOR INJECTORS

1шт.

24

500365533

ECU

ELECTR.CONTR.UNIT, E.C.U.

1шт.

25

16585724

BOLT,M6 x 16mm, Cl 8.8

HEXAGON BOLT, M6X16 MM

4шт.

26

2853118

BOLT,Hex, M6 x 1 x 18mm

HEXAGON BOLT, M6X18 MM

2шт.

27

42546555

O-RING

O-RING

2шт.

28

2852197

FLANGE NUT,M6 x 1

HEXAGON NUT, M6

2шт.

29

2853970

BOLT

HEXAGON BOLT, M6X10 MM

2шт.

30

504067009

BRACKET

RETAINER

1шт.

31

500371778

BRACKET

FASTENING BRACKET

1шт.

32

42099097

CABLE TIE

CABLE STRAP

9шт.

33

17317599

RETAINER COLLAR

FASTENING BRACKET

1шт.

34

17317490

RETAINER COLLAR

FASTENING BRACKET, dia=30 MM

3шт.

35

17316690

RETAINER COLLAR

FASTENING BRACKET, dia=20,5 MM

1шт.

36

17316592

COLLAR

PIPE CLIP

1шт.

37

10441390

COLLAR,12mm, Coat, 7mm Bolt Hole, P Type

FASTENING BRACKET

1шт.

38

16689424

SCREW,M6 x 30mm

SOCKET-HEAD SCREW, M6X30 MM

4шт.

39

99455033

CLAMP

CLIP

3шт.

40

16592225

BOLT,M8 x 55mm

HEXAGON BOLT, M8X55 MM

1шт.

41

16586325

BOLT,Hex, M8 x 20mm, Cl 8.8

HEXAGON BOLT, M8X20 MM

1шт.

42

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

PIPE CLIP

1шт.

43

10450590

CLAMP,18mm, Coat, 9mm Bolt Hole, P Type

PIPE CLIP, dia=18 MM

1шт.

44

2852389

FLANGE NUT

HEXAGON NUT, M8

1шт.

45

504079747

BRACKET

RETAINER, FROM # 86374

1шт.

46

16586824

SCREW,M8 x 45mm

HEXAGON BOLT, M8X1,25X45 MM, FROM # 86374

1шт.
