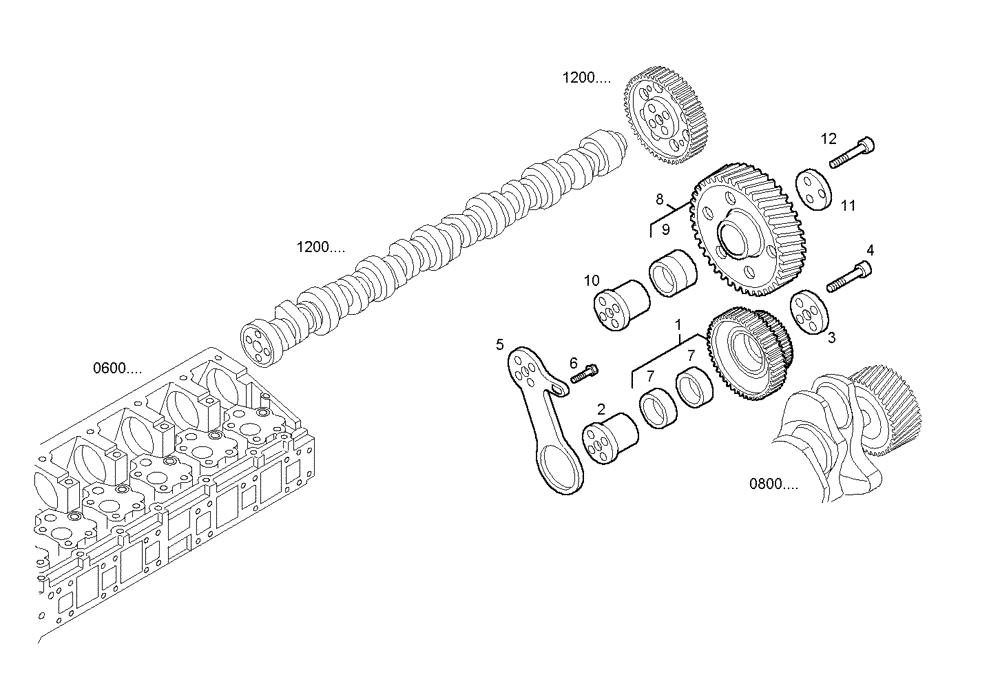

Запчасти Case IH F3AE0684G B003 (1000.097) - GEAR DRIVE

1

500339012

IDLER GEAR

CAMSHAFT PINION, ASSY

1шт.

2

500304182

PIN

FLANGED HUB

1шт.

3

504003307

LOCK WASHER

STOP WASHER

1шт.

4

16679034

BOLT,M12 x 90mm

HEXAGON BOLT, M12X90 MM

3шт.

5

500305483

BRACKET

YOKE

1шт.

6

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X16 MM

1шт.

7

98475174

BUSHING

BUSH

2шт.

8

500305485

IDLER GEAR

CAMSHAFT PINION, ASSY

1шт.

9

500310440

BUSHING

BUSH

1шт.

10

500305484

PIN

PIN

1шт.

11

99483931

LOCK WASHER

STOP WASHER

1шт.

12

16679234

SCREW

HEXAGON BOLT

3шт.
