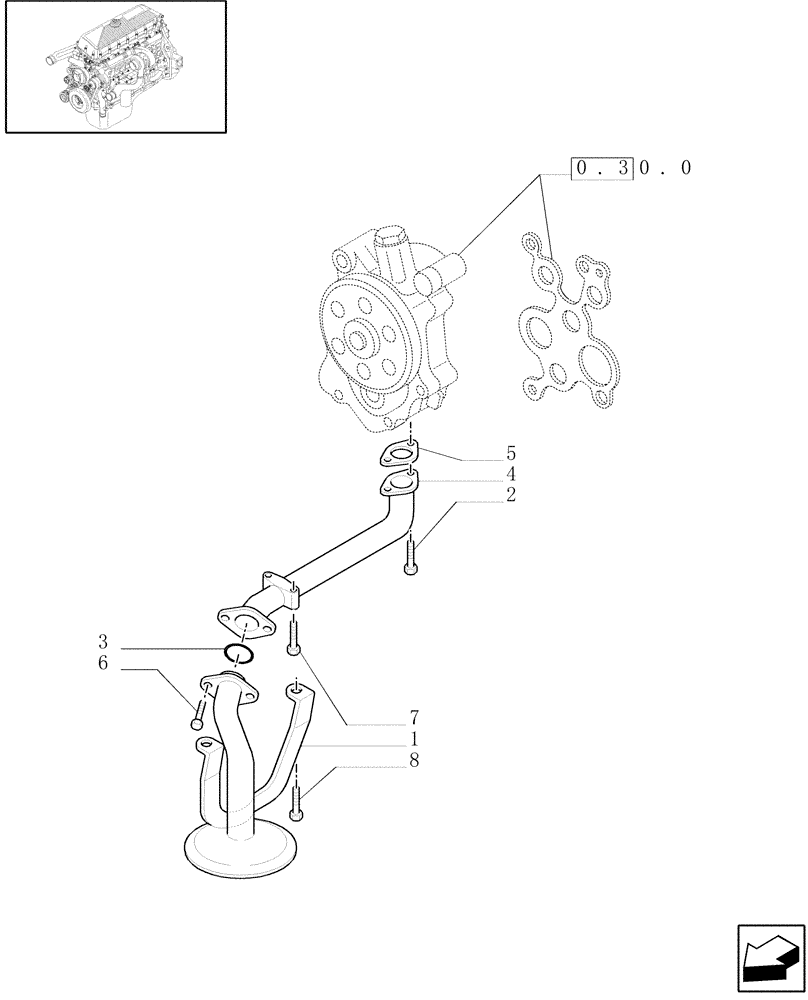

Запчасти Case IH F3AE0684G B001 (0.30.5[01]) - OIL PUMP PIPING (500387388)

1

500361099

RIGID TUBE

1шт.

2

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

2шт.

3

70925919

O-RING,-222, Cl 7, 1.484" ID x .139" Thk

DIA.MM 37,69 - THK.3,53

1шт.

4

99468495

RIGID TUBE

1шт.

5

500343518

GASKET

1шт.

6

16592224

SCREW,M8 x 55mm

M8 x 55 MM

2шт.

7

16592324

BOLT,Hex, M8 x 60mm

2шт.

8

2852247

BOLT,Hex, M8 x 1.25 x 30mm

M8 x 30 MM

2шт.
