Запчасти Case IH F3AE0684E B006 (3050.021) - SUCTION STRAINER

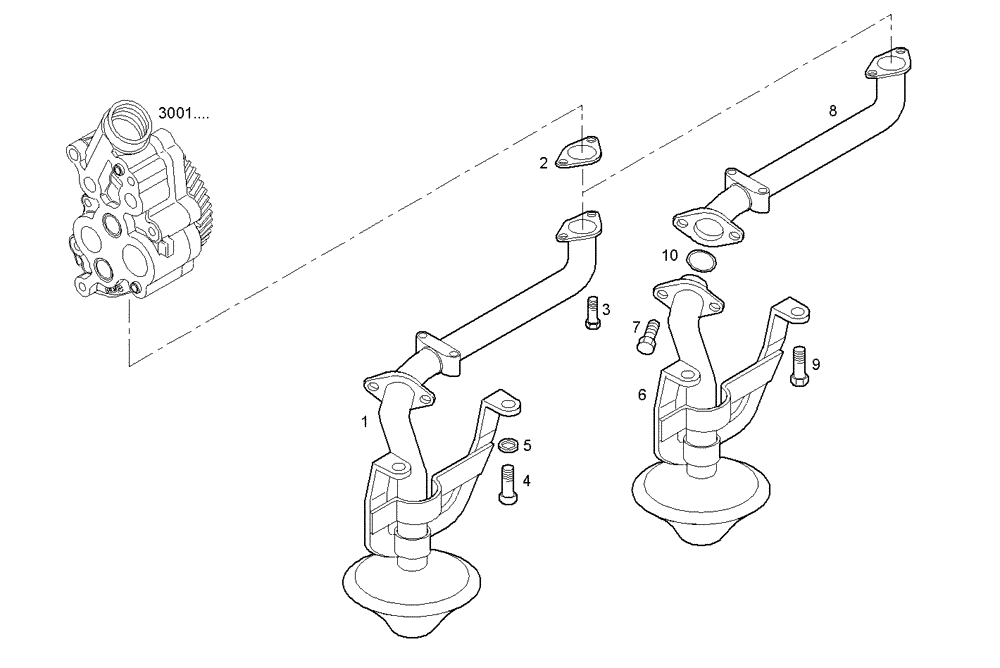

Схема запчастей Case IH F3AE0684E B006 - (3050.021) - SUCTION STRAINER

Артикул

Название

Примечание

Количество

1

504021761

SUCTION PIPE

OIL SUCTION PIPE, FROM # 76288

1шт.

2

500343518

GASKET

FLAT ENGINE GASKET

1шт.

3

16592225

BOLT,M8 x 55mm

HEXAGON BOLT, M8X55 MM, FROM # 76288

2шт.

4

16690424

SCREW

CYLIND-HEAD SCREW, M8X1,25X16 MM, FROM # 76288

4шт.

5

17096824

LOCK WASHER

WASHER, dia=8,40X15 MM, FROM # 76288

4шт.

6

500382437

STRAINER ELEMENT

OIL SUCTION PIPE, UP TO # 76287

1шт.

7

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X16 MM, UP TO # 76287

2шт.

8

99485384

RIGID TUBE

OIL LINE, UP TO # 76287

1шт.

9

16592324

BOLT,Hex, M8 x 60mm

HEXAGON BOLT, M8X60 MM, UP TO # 76287

2шт.

10

70925919

O-RING,-222, Cl 7, 1.484" ID x .139" Thk

O-RING, dia=37,69 MM SP=3,53 MM, UP TO # 76287

1шт.

Выбрано товаров: 10
