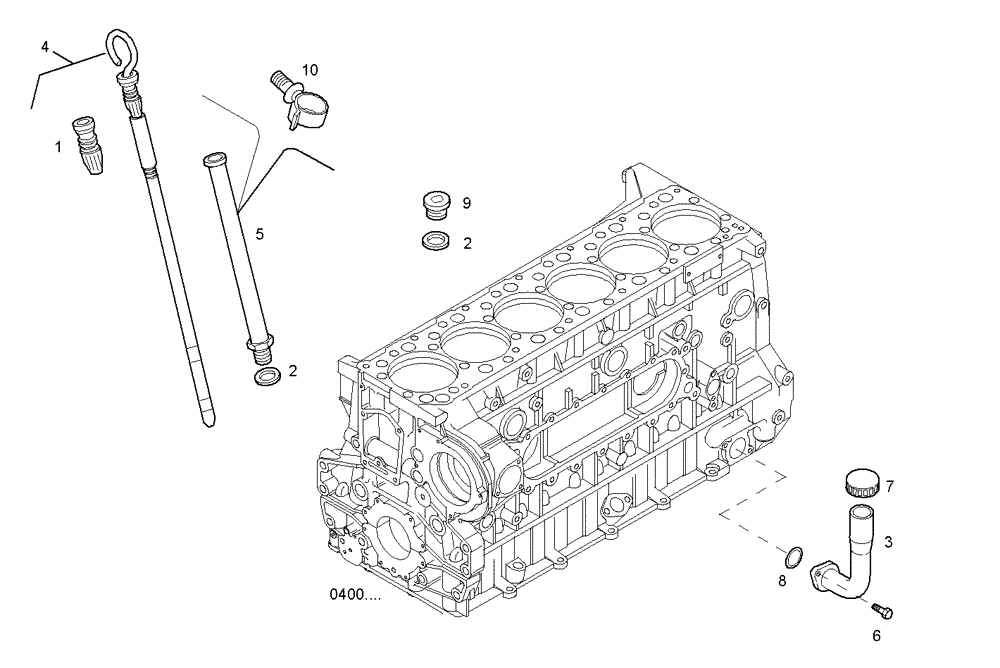

Запчасти Case IH F3AE0684E B006 (2710.159) - OIL DIPSTICK

1

2852127

GASKET,5mm ID, 18mm OD, 13mm OD, 43mm L

RUBBER GASKET

1шт.

2

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

SEAL GASKET, dia=18X26 MM SP=1,5 MM

2шт.

3

504034153

RIGID TUBE

OIL FILLER PIPE

1шт.

4

504052722

DIPSTICK

OIL DIPSTICK, ASSY

1шт.

5

99471019

PIPE

OIL LEVEL TUBE

1шт.

6

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

SOCKET-HEAD SCREW, M8X20 MM

2шт.

7

2852136

CAP,48mm ID x 56mm OD x 18mm W

OIL FILLER PLUG

1шт.

8

14463881

O-RING,1.359" ID x 0.139" Width

O-RING, dia=34,5 MM SP=3,53 MM

1шт.

9

16992511

PLUG

THREADED PLUG, M18X1,5

1шт.

10

500349848

CLAMP

HITCH ASSY.

1шт.
