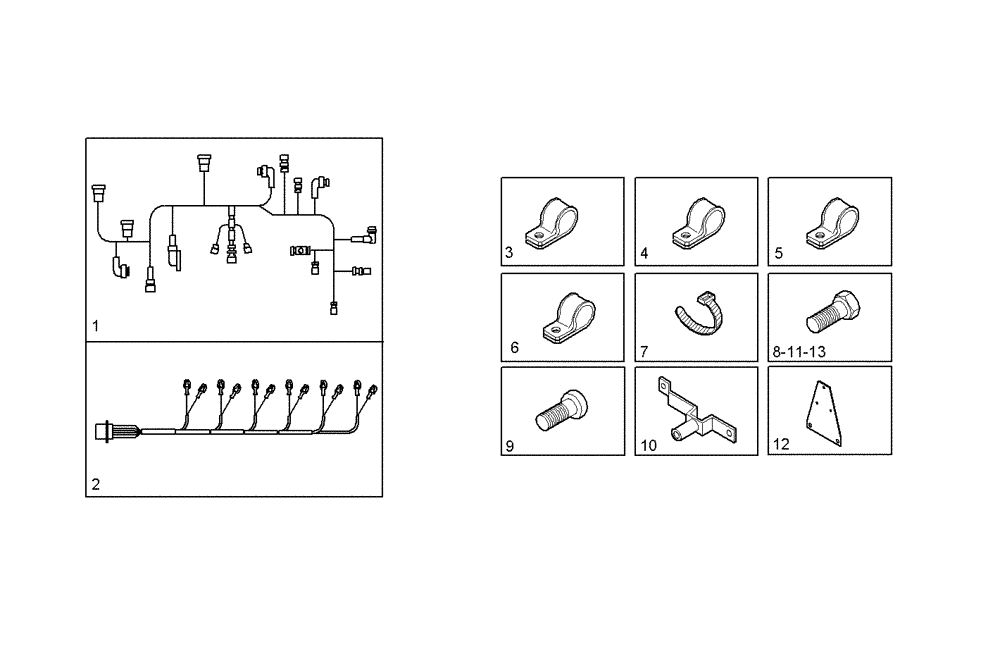

Запчасти Case IH F3AE0684E B006 (1730.036) - ENGINE CABLE

1

504074629

ELECTRIC CABLE

SET OF WIRING, FROM # 51405

1шт.

2

504009221

WIRE HARNESS

WIRE/CABLE, FOR INJECTORS

1шт.

3

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

PIPE CLIP

1шт.

4

17310001

CLAMP

FASTENING BRACKET, dia=4 MM

1шт.

5

17310401

CLAMP

FASTENING BRACKET, dia=8 MM

3шт.

6

17310501

CLAMP

FASTENING BRACKET, dia=10 MM

1шт.

7

42099097

CABLE TIE

CABLE STRAP

1шт.

8

11612224

SCREW

HEXAGON BOLT, M6X12 MM

5шт.

9

16689424

SCREW,M6 x 30mm

SOCKET-HEAD SCREW, M6X30 MM

4шт.

10

500371778

BRACKET

FASTENING BRACKET

1шт.

11

16592225

BOLT,M8 x 55mm

HEXAGON BOLT, M8X55 MM

1шт.

12

504067009

BRACKET

RETAINER

1шт.

13

2853970

BOLT

HEXAGON BOLT, M6X10 MM

1шт.

14

504056458

SET OF WIRING, UP TO # 51404

WIRE HARNESS

1шт.
