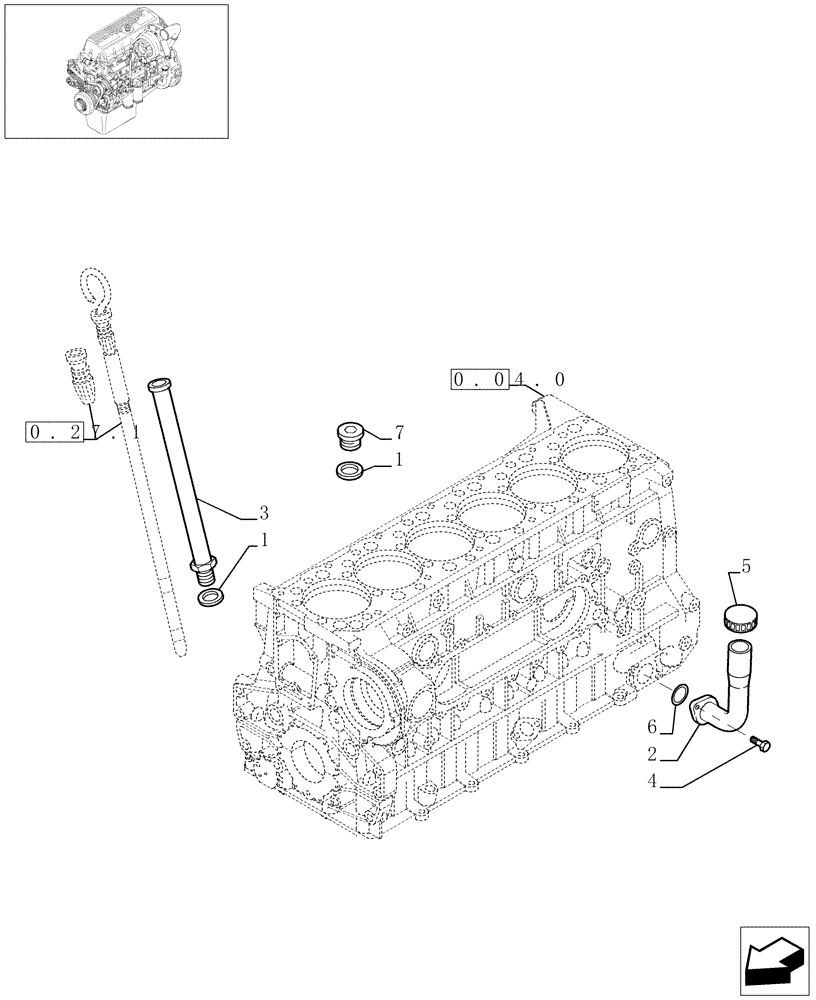

Запчасти Case IH F3AE0684E B002 (0.27.0[01]) - OIL LEVEL CHECK (504032805 - 504036858)

1

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

2

504034153

RIGID TUBE

1шт.

3

99471019

PIPE

1шт.

4

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

M8X20 mm

2шт.

5

2852136

CAP,48mm ID x 56mm OD x 18mm W

1шт.

6

14463881

O-RING,1.359" ID x 0.139" Width

D=35.5X3.53 mm

1шт.

7

16992511

PLUG

M18X1.5

1шт.
