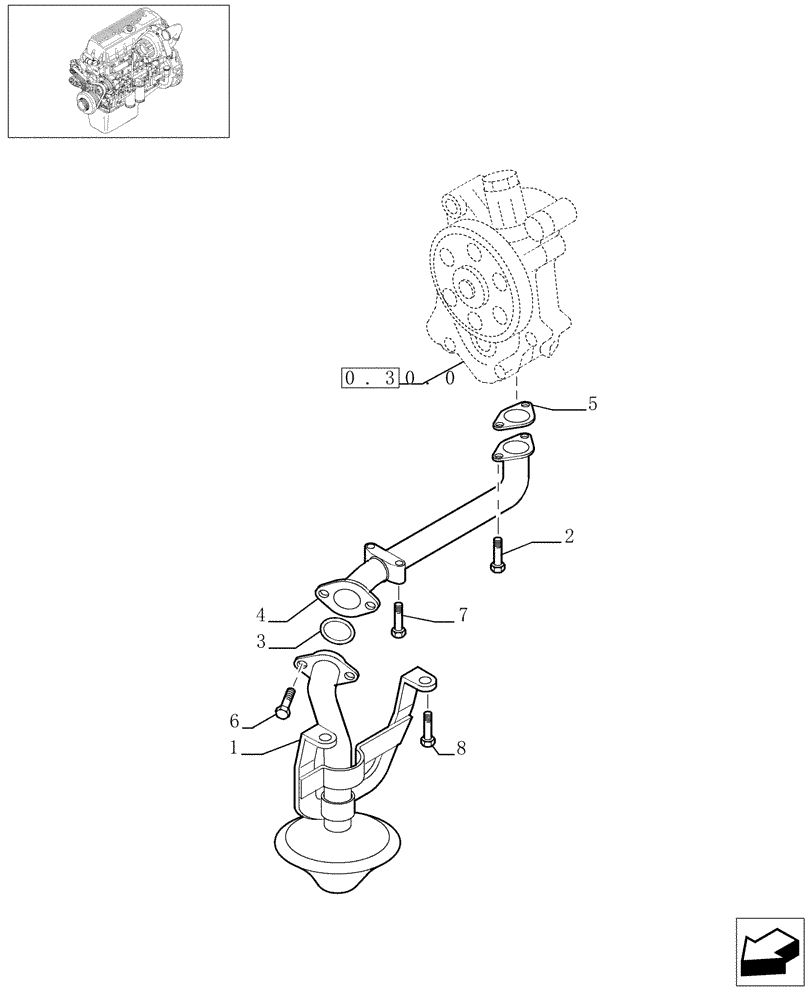

Запчасти Case IH F3AE0684E B002 (0.30.5[01]) - OIL PUMP PIPING (500338694)

1

500382437

STRAINER ELEMENT

1шт.

2

18138324

SCREW,M8 x 1.25 x 16mm

M8X1,25X16 mm

2шт.

3

70925919

O-RING,-222, Cl 7, 1.484" ID x .139" Thk

D=37.69 X3,53 mm

1шт.

4

99485384

RIGID TUBE

1шт.

5

500343518

GASKET

1шт.

6

16592224

SCREW,M8 x 55mm

M8X55 mm

2шт.

7

16592324

BOLT,Hex, M8 x 60mm

M8 x 40

2шт.

8

16673834

SCREW,M8 x 30mm

M8X30 mm

2шт.
