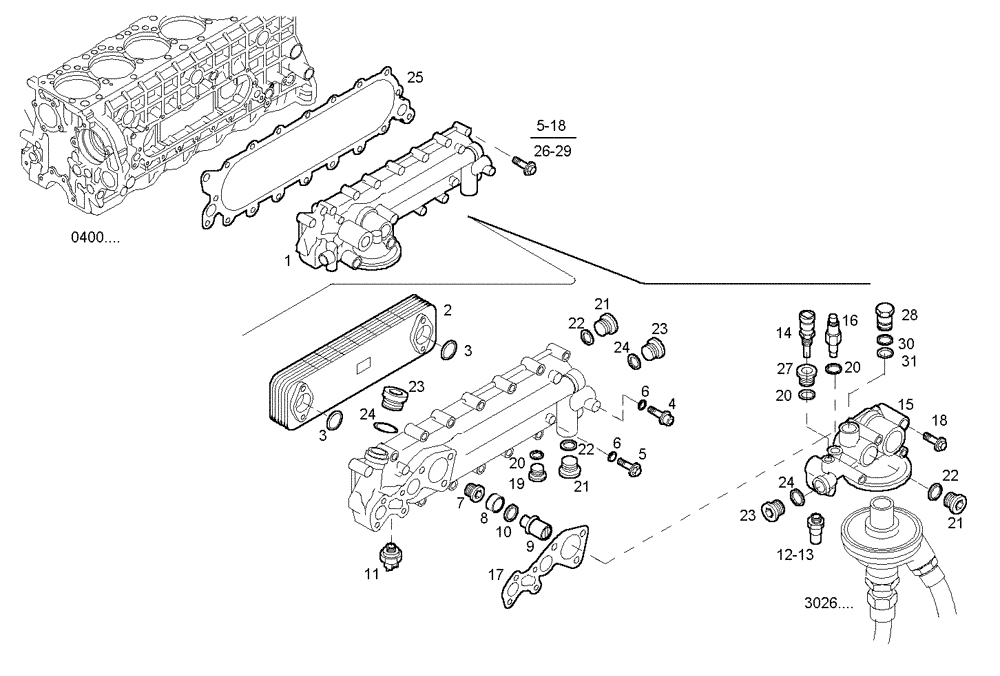

Запчасти Case IH F3AE0684D B001 (3100.096) - OIL - WATER HEAT EXCHANGER

1

504015758

HEAT EXCHANGER

HEAT EXCHANGER, ASSY

1шт.

2

99434989

HEAT EXCHANGER

OIL COOLER

1шт.

3

14459081

O-RING,1.737" ID x 0.103" Width

O-RING, dia=44,12 MM SP=2,62 MM

2шт.

4

16673934

SCREW,M8 x 35mm

HEXAGON BOLT, M8X35 MM

3шт.

5

16586924

BOLT,Hex, M8 x 50mm

HEXAGON BOLT, M8X50 MM

2шт.

6

99489014

SEALING WASHER

SEAL GASKET, dia=7 MM

4шт.

7

99433799

PLUG

THREADED PLUG, M32X1,5

1шт.

8

99433798

SPACER

SPACING BAR, dia=28 MM

1шт.

9

98498322

THERMOSTAT

VALVE

1шт.

10

98494952

GASKET,35mm ID x 1.5mm Thk

GASKET, M35X1,5

1шт.

11

500377533

SENDER UNIT

SENSOR, Pressure

1шт.

12

98445111

SWITCH

PRESSURE SWITCH, BORLETTI

1шт.

13

98442879

SWITCH

PRESSURE SWITCH, SIPEA

1шт.

14

82017881

SENSOR

TEMP. TRANSMITTER, PRESS. & TEMPER.

1шт.

15

504013552

SUPPORT

OIL FILTER SUPPORT

1шт.

16

4741616

BANJO BOLT

THREADED UNION, M16X1.5

1шт.

17

504013562

GASKET

GASKET

1шт.

18

2852267

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

HEXAGON BOLT, M8X90 MM

7шт.

19

16992411

PLUG

THREADED PLUG, M16X1,5

1шт.

20

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

3шт.

21

16993711

PLUG,M35 x 1.5

THREADED PLUG, M35X1,5

3шт.

22

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

SEAL GASKET, dia=35 MM

3шт.

23

10278301

PLUG,M28 x 1.5 x 11, Brass

LOCK PLUG, M28X1,5

3шт.

24

99432291

GASKET,28mm ID

SEAL GASKET, dia=28 MM

3шт.

25

98497873

GASKET

FLAT ENGINE GASKET

1шт.

26

16586724

SCREW,M8 x 1.25 x 40mm

SCREW, M8X1,25X40 MM

14шт.

27

504009680

ADAPTER

THREADED UNION

1шт.

28

500337200

PLUG

THREADED PLUG

1шт.

29

16598624

SCREW,Hex Flg, M8 x 1.25 x 140mm

HEXAGON BOLT, M8X1,25X140 MM

2шт.

30

500337199

O-RING

O-RING

1шт.

31

14453181

O-RING,0.489" ID x 0.07" Width

O-RING

1шт.
