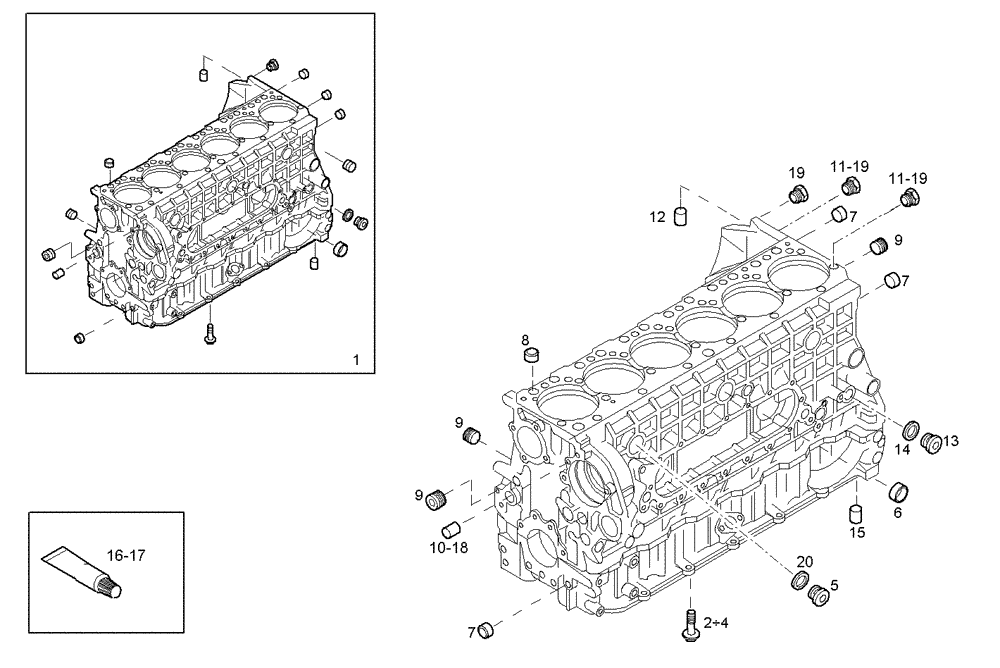

Запчасти Case IH F3AE0684D B001 (0401.016) - CRANKCASE

1

504105807

CYLINDER BLOCK,6 Cylinders

CRANKCASE, ASSY

1шт.

2

504108191

SCREW

HEXAGON BOLT

14шт.

3

99432869

SCREW

HEXAGON BOLT, M12X125 MM

25шт.

4

99433863

SCREW

HEXAGON BOLT, M12X58 MM

1шт.

5

4665029

PLUG

LOCK PLUG, M42X1,5

1шт.

6

16991370

PLUG

LOCK PLUG, dia=45 MM

2шт.

7

16990870

PLUG

LOCK PLUG, dia=28 MM

3шт.

8

16990670

PLUG,Lock, 22mm Dia

LOCK PLUG, dia=22 MM

6шт.

9

504051238

PLUG,Threaded, 3/8" Dia

THREADED PLUG, DIAM=3/8"

3шт.

10

98475100

PLUG

THREADED PLUG, R3/4x12, UP TO # 72585

1шт.

11

504051237

PLUG

THREADED PLUG, DIAM=1/4"

4шт.

12

500368916

DOWEL

OIL NOZZLE

1шт.

13

10300714

PLUG,M16 x 1.5 x 14

THREADED PLUG, M16X1,5

1шт.

14

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

1шт.

15

99467554

DOWEL

DOWEL PIN, dia=14 MM

4шт.

16

2995644

SEALANT

ADHESIVE/STICKER

1шт.

17

2992695

SEAL

ADHESIVE/STICKER, LOCTITE

1шт.

18

504120669

PLUG

LOCK PLUG, M24X1,5, FROM # 72586

1шт.

19

500356932

PLUG

LOCK PLUG, dia=12 MM

3шт.

20

99469382

SEAL

SEAL GASKET, D=42x50x2

1шт.
