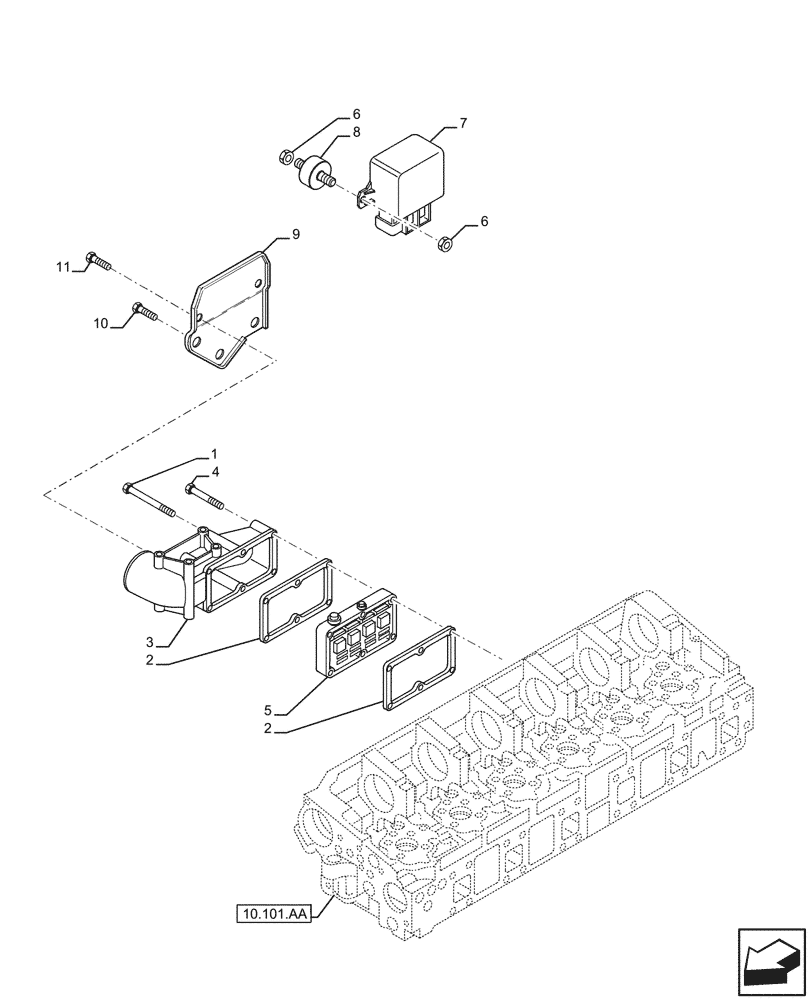

Запчасти Case IH F2CFP614B H003 (10.254.AM) - INLET MANIFOLD (10) - ENGINE

1

16599325

SCREW,M10 x 150mm

3шт.

2

504375264

GASKET,0.3mm Thk

2шт.

2

504026624

GASKET

2шт.

3

98481254

Air Intake Tube

ELBOW

1шт.

3

504074687

MANIFOLD

1шт.

4

16593125

BOLT,M10 x 100mm

1шт.

5

504041252

RESISTOR

1шт.

6

NS

NOT SERVICED

Nut

4шт.

7

500343161

RELAY

1шт.

8

NS

NOT SERVICED

Lug Rubber

2шт.

9

504321397

BRACKET, SUPPORTING

Bracket

1шт.

10

16597925

BOLT,Hex, M8 x 14mm

2шт.

11

16689024

SCREW,M16 x 12mm

2шт.
