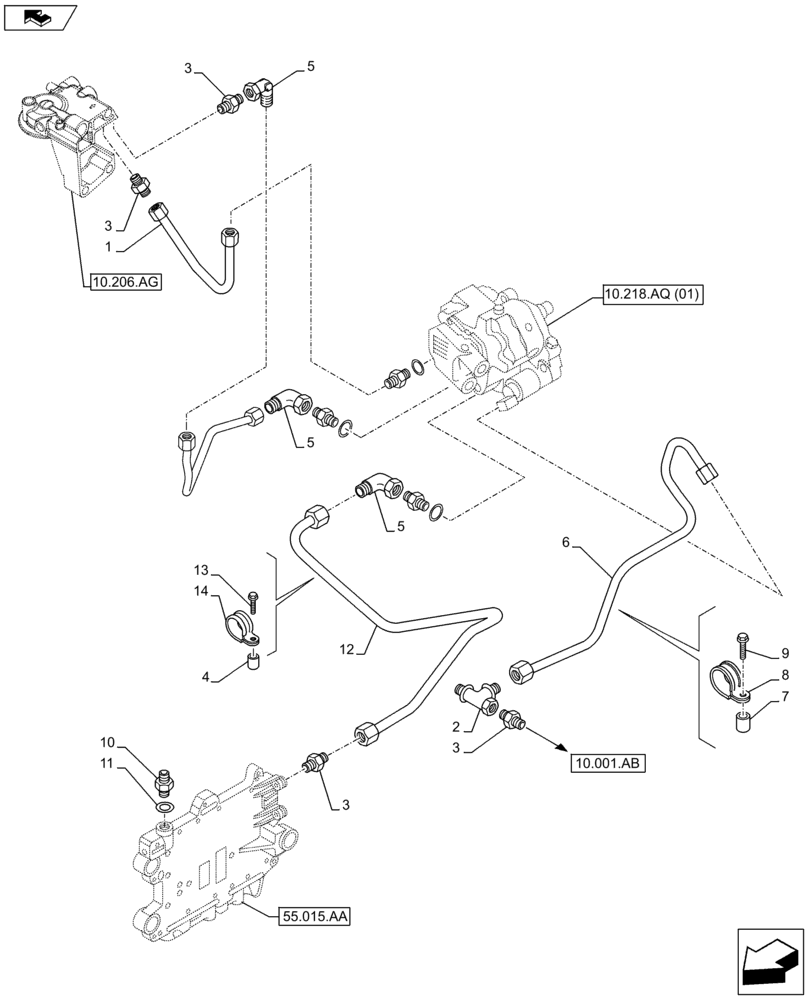

Запчасти Case IH F2CFP614A H001 (10.210.AF) - FUEL LINE (10) - ENGINE

1

504354068

TUBE

1шт.

2

16504714

M16 x 1.5mm

COUPLING

1шт.

3

41031568

M16 x 1.5mm

FITTING

4шт.

4

13605711

SPACER

1шт.

5

16504015

ELBOW

M16 x 1.5mm

3шт.

6

504354070

TUBE

1шт.

7

8580153

SPACER

1шт.

8

99431539

STEEL PLATE

1шт.

9

16692125

M10 x 25mm

SCREW

1шт.

10

504081274

HYD CONNECTOR

M16 x 1.5mm - M18 x 1.5mm

1шт.

11

5801560870

WASHER

16 x 24mm 1.9mm Thk

1шт.

12

5801560865

PIPE

1шт.

13

2852323

SCREW,M8 x 1.25 x 14mm

M8 x 14mm

1шт.

14

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

14

10450590

CLAMP,18mm, Coat, 9mm Bolt Hole, P Type

1шт.
