(55.015.AC) - ENGINE, SENSOR

Запчасти Case IH F2CFP613A H004 (55.015.AC) - ENGINE, SENSOR (55) - ELECTRICAL SYSTEMS

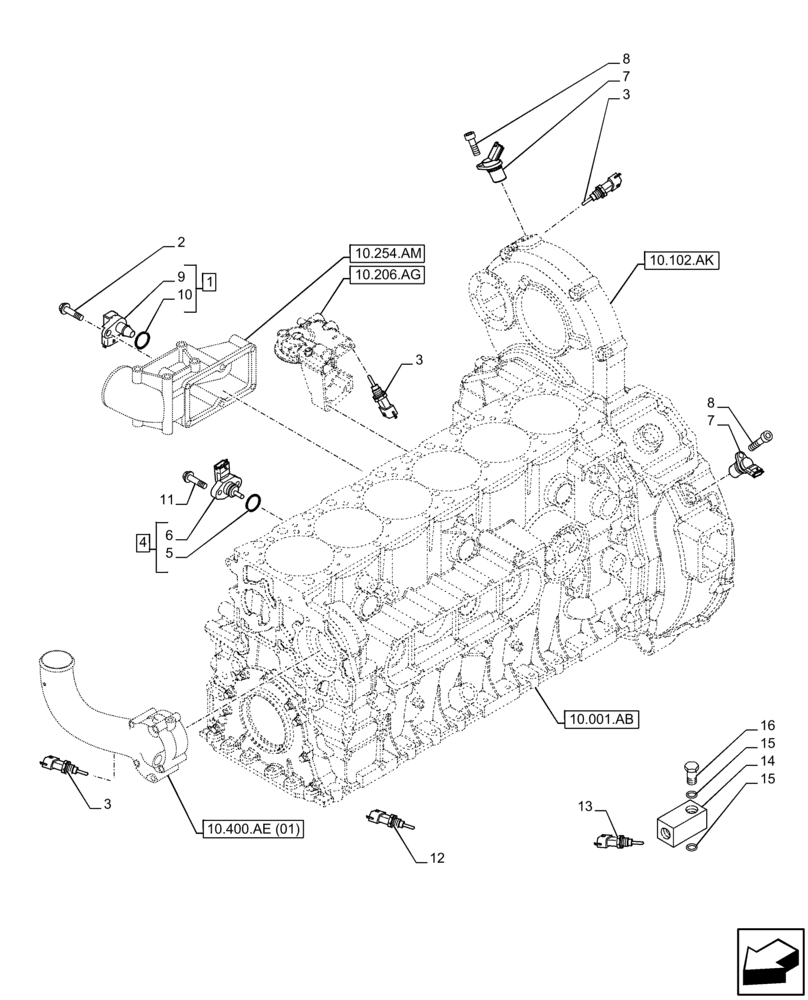

Схема запчастей Case IH F2CFP613A H004 - (55.015.AC) - ENGINE, SENSOR (55) - ELECTRICAL SYSTEMS
5
10.254.am
3
13
12
14
3
10.102.ak
10.001.ab
1
8
16
3
2
10.400.ae (01)
6
10
8
10.206.ag
7
15
11
4
15
7
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504372225

SENSOR,Temperature / Pressure

ASSY, Air Pressure and Temperature, Incl 9; 10

1шт.

2

16597225

BOLT,M6 x 18mm

1шт.

3

500382599

SENSOR,Temperature

Pressure and Temperature

2шт.

4

504358206

ASSY, Oil Pressure and Temperature, Incl 5; 6

SWITCH,Pressure

1шт.

5

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

6

NSS

NOT SOLD SEPARAT

Sensor, Incl in 4

1шт.

7

504096645

TRANSMITTER

2шт.

8

16689024

SCREW,M16 x 12mm

2шт.

9

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

1шт.

10

42546555

O-RING

1шт.

11

16585870

SCREW,Hex, M6 x 20mm

2шт.

12

5801567639

SENSOR

Sensor

1шт.

13

504364902

SENSOR

1шт.

14

5801494046

SUPPORT

Support

1шт.

15

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

2шт.

16

99469255

PLUG

1шт.
