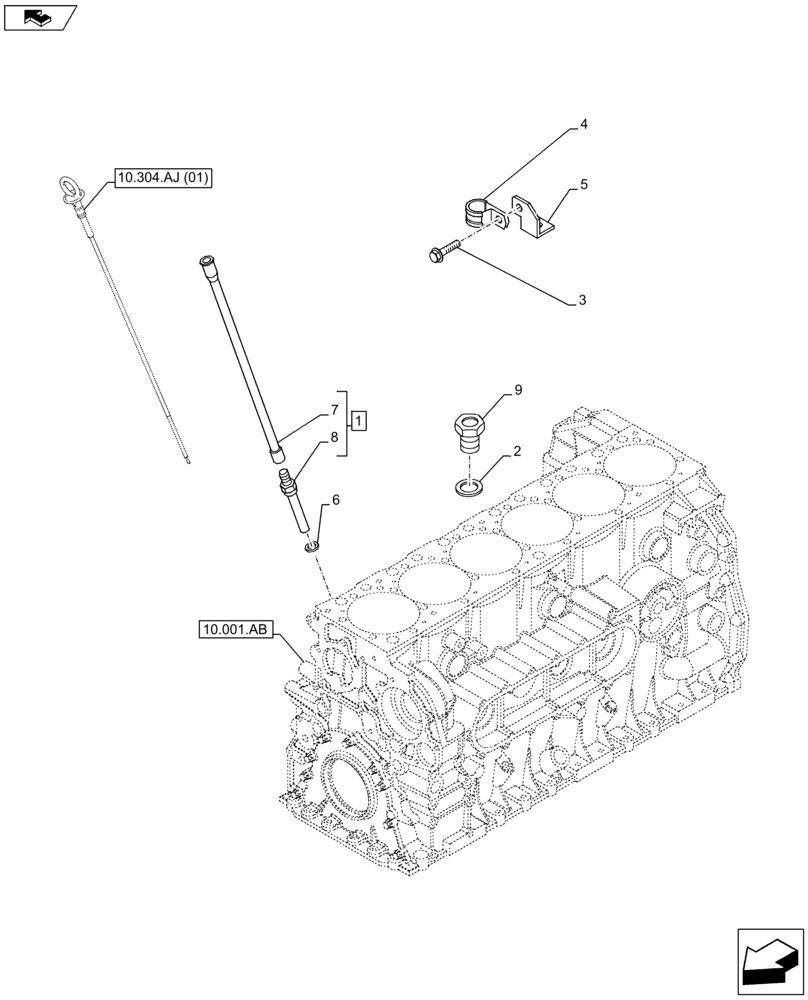

Запчасти Case IH F2CFP613A H004 (10.304.AJ[02]) - ENGINE OIL, DIPSTICK (10) - ENGINE

1

504323917

TUBE

ASSY, Incl 7, 8

1шт.

2

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.

3

16586225

BOLT,M8 x 16mm

1шт.

4

17316699

CLAMP

14mm Dia

1шт.

5

5801769676

FASTENER

1шт.

6

99489020

FITTING

18mm Dia

1шт.

7

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

8

504323023

UNION

1шт.

9

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.
