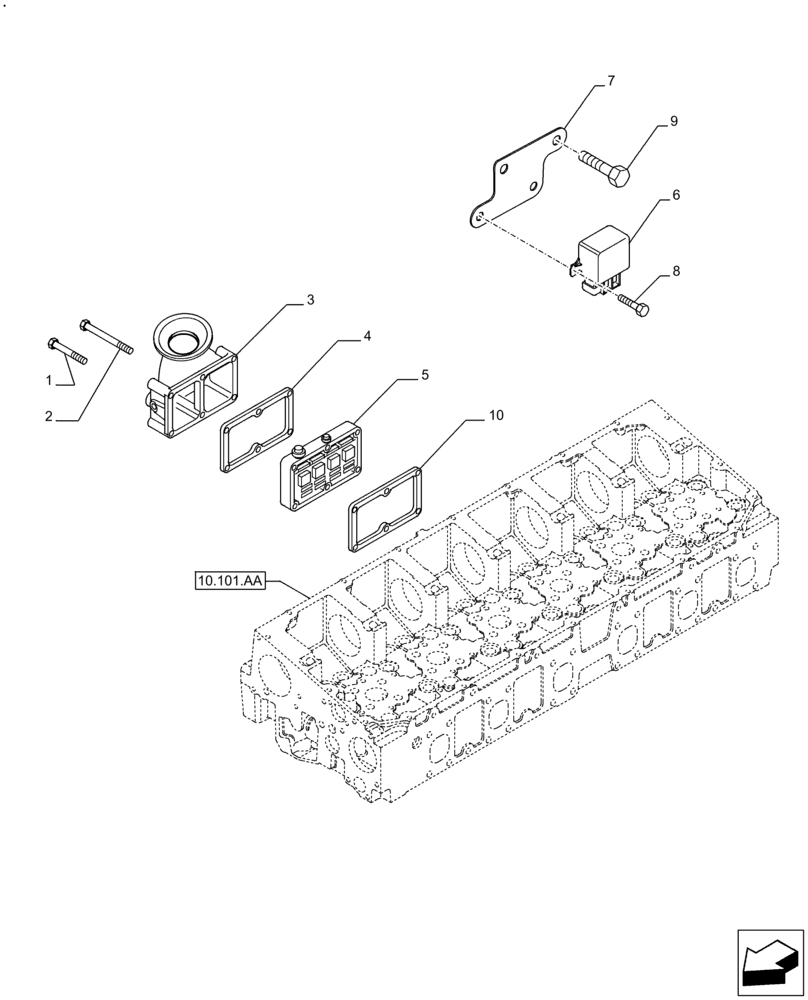

Запчасти Case IH F2CFE614D B003 (10.254.AM) - INLET MANIFOLD (10) - ENGINE

1

16593125

BOLT,M10 x 100mm

M10 x 100 mm

5шт.

2

16599325

SCREW,M10 x 150mm

M10 x 150 mm

1шт.

3

504074687

MANIFOLD

1шт.

4

504026624

GASKET

1шт.

5

504041252

RESISTOR

1шт.

6

86619908

RELAY,12V, 150A

1шт.

7

504321397

BRACKET, SUPPORTING

1шт.

8

16689024

SCREW,M16 x 12mm

M6 x 1

2шт.

9

2852323

SCREW,M8 x 1.25 x 14mm

3шт.

10

504375264

GASKET,0.3mm Thk

1шт.
