/ / / / / / / / (10.254.AM) - INLET MANIFOLD

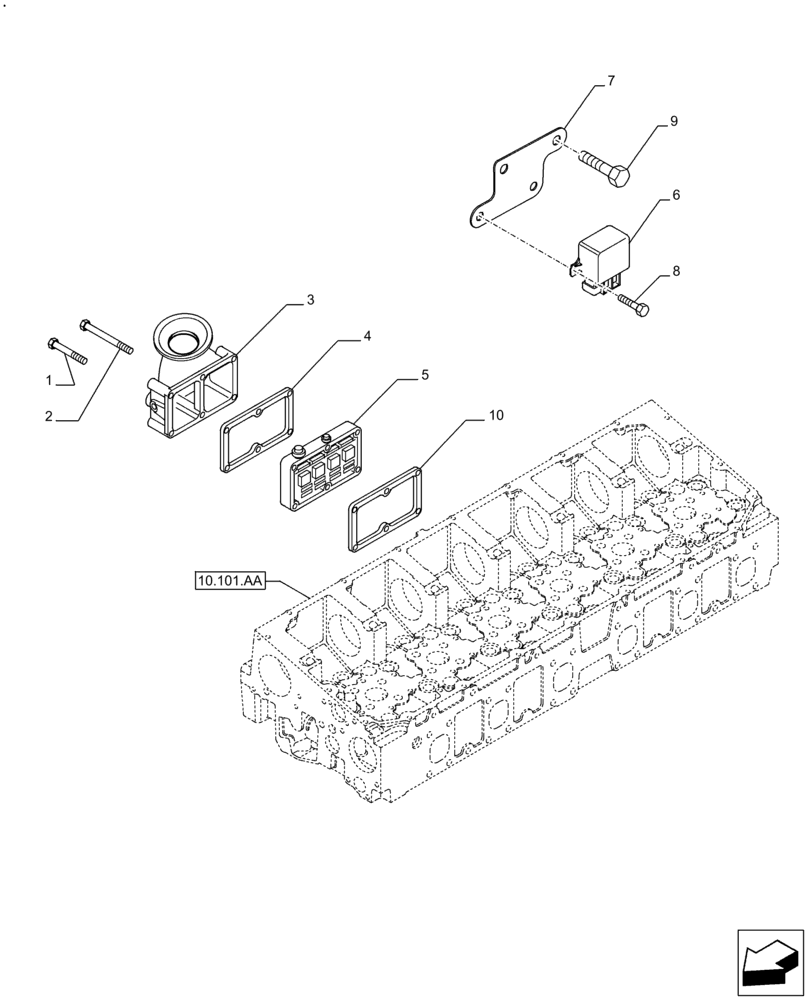

Запчасти Case IH F2CFE614D B002 (10.254.AM) - INLET MANIFOLD (10) - ENGINE
9
10
3
10.101.aa
6
4
8
2
7
5
1
1
16593125
BOLT,M10 x 100mm
M10 x 100 mm
5шт.
2
16599325
SCREW,M10 x 150mm
M10 x 150 mm
1шт.
3
504074687
MANIFOLD
1шт.
4
504026624
GASKET
1шт.
5
504041252
RESISTOR
1шт.
6
86619908
RELAY,12V, 150A
1шт.
7
504321397
BRACKET, SUPPORTING
1шт.
8
16689024
SCREW,M16 x 12mm
M6 x 1
2шт.
9
2852323
SCREW,M8 x 1.25 x 14mm
3шт.
10
504375264
GASKET,0.3mm Thk
1шт.
