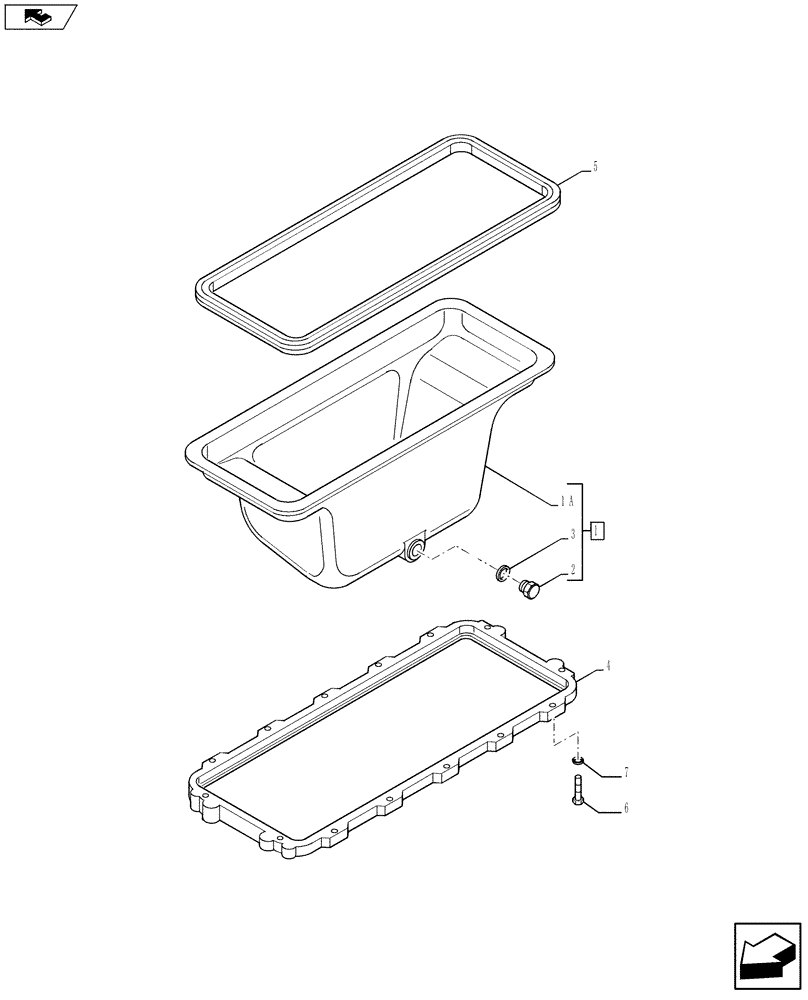

Запчасти Case IH F2CFE614D A004 (10.102.01) - OIL SUMP & RELATED PARTS (5801381936) (10) - ENGINE

1

5801367986

SUMP

ASSY Contains Ref.1A, 2, 3

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

10305171

PLUG,M22 x 1.5 x 21

M22 x 1.5

1шт.

3

16508460

SEAL

22 x 27 x 1.5

1шт.

4

504143828

SPACER

1шт.

5

504346309

GASKET

1шт.

6

16587525

BOLT,M10 x 45mm

M10 x 45 mm

26шт.

7

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

D = 10 x 18 mm

4шт.
