(55.015.AC) - ENGINE, SENSOR

Запчасти Case IH F2CFE614C B003 (55.015.AC) - ENGINE, SENSOR (55) - ELECTRICAL SYSTEMS

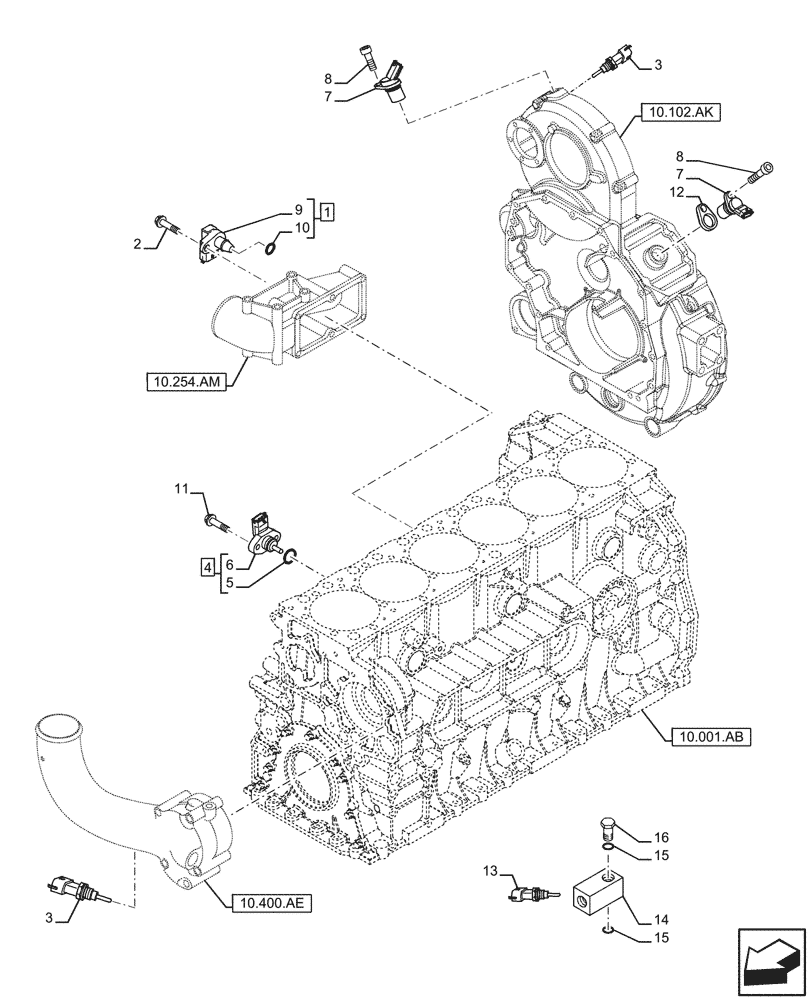

Схема запчастей Case IH F2CFE614C B003 - (55.015.AC) - ENGINE, SENSOR (55) - ELECTRICAL SYSTEMS
10.001.ab
3
13
5
4
8
7
9
1
8
7
6
12
10
15
16
14
15
3
2
11
10.400.ae
10.254.am
10.102.ak
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504372225

SENSOR,Temperature / Pressure

Air Pressure and Temperature, ASSY, Incl 9, 10

1шт.

2

16597225

BOLT,M6 x 18mm

1шт.

3

500382599

SENSOR,Temperature

2шт.

4

504358206

Oil Pressure, ASSY, Incl 5, 6

SWITCH,Pressure

1шт.

5

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

6

NSS

NOT SOLD SEPARAT

Sensor, Incl in 4

1шт.

7

504096645

TRANSMITTER

Speed Sensor

2шт.

8

16689024

SCREW,M16 x 12mm

2шт.

9

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

1шт.

10

42546555

O-RING

1шт.

11

16585870

SCREW,Hex, M6 x 20mm

2шт.

12

504163664

SPACER

Pressure

1шт.

13

504364902

SENSOR

Crankcase Pressure Sensor, Crankcase Breather Sensor

1шт.

14

5801494046

SUPPORT

1шт.

15

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

2шт.

15

5801405341

SEAL

2шт.

16

99469255

PLUG

M12 x 1.5mm

1шт.
