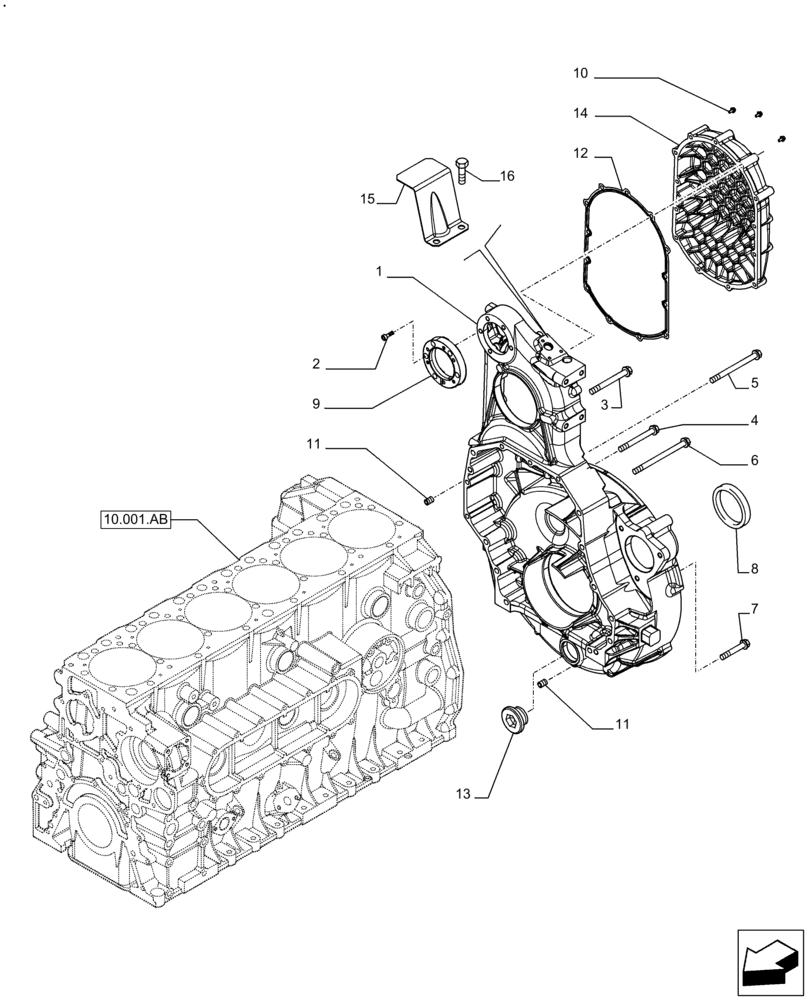

Запчасти Case IH F2CFE614C B002 (10.102.AK) - CRANKCASE, COVER (10) - ENGINE

1

504289274

HOUSING

1шт.

2

16707334

BOLT,M8 x 30mm, Cl 10.9

M8 x 30 mm

5шт.

3

16593425

BOLT,M12 x 100mm

M10 x 70 mm

2шт.

4

16593125

BOLT,M10 x 100mm

M10 x 100 mm

3шт.

5

16587325

SCREW,Hex, M10 x 35mm

M10 x 35 mm

2шт.

6

2852925

SCREW,Hex, M12 x 1.75 x 130mm

M12 x 130 mm

3шт.

7

2852327

BOLT,Flng, M12 x 1.75 x 80mm

M12 x 1,7 X 80 mm

5шт.

8

504244493

SEAL

Rear

1шт.

8

504042684

SHAFT SEAL

Front

1шт.

9

504290087

FLANGE

1шт.

10

16586725

BOLT,Hex, M8 x 1.25 x 40mm

M8 x 1,25 X 40 mm

4шт.

10

16592325

BOLT,M8 x 60mm

M8 x 40 mm

9шт.

11

500314968

DOWEL

D=12 mm

2шт.

12

504290773

GASKET

1шт.

13

16992915

PLUG

M52 x 2 mm

1шт.

14

504356982

COVER

1шт.

15

504347962

HEAT SHIELD

1шт.

16

2853970

BOLT

M6 x 10 mm

2шт.
