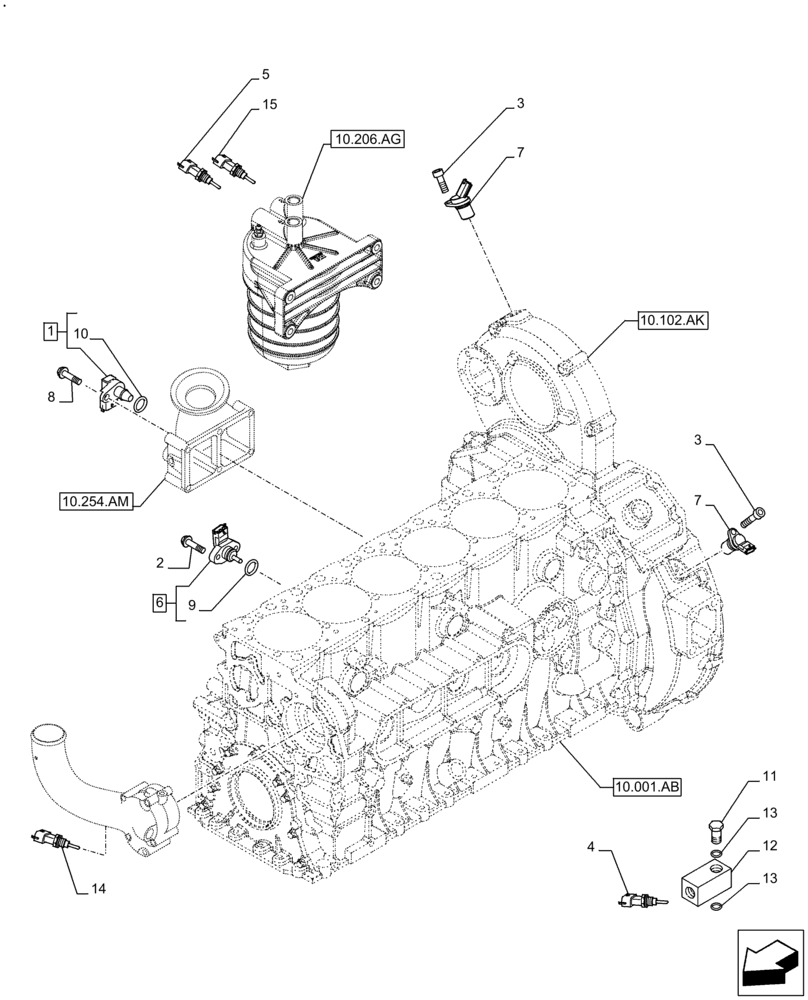

Запчасти Case IH F2CFE614B B006 (55.015.AC) - ENGINE, SENSOR (55) - ELECTRICAL SYSTEMS

1

504372225

SENSOR,Temperature / Pressure

ASSY; Incl 10

1шт.

2

16585870

SCREW,Hex, M6 x 20mm

M6 x 20 mm

2шт.

3

16689024

SCREW,M16 x 12mm

M6 x 12 mm

2шт.

4

504364902

SENSOR

1шт.

5

500382599

SENSOR,Temperature

Press. & Temp.

3шт.

6

504358206

SWITCH,Pressure

1шт.

7

504096645

TRANSMITTER

2шт.

8

16597225

BOLT,M6 x 18mm

M6 x 18 mm

1шт.

9

4895477

O-RING,2.62mm Thk x 13.94mm ID

D=13,94 Sp=2,62 mm

1шт.

10

42546555

O-RING

D=16 x 24 mm Sp=2,62 mm

1шт.

11

99469255

PLUG

M12 x 1,5 mm

1шт.

12

5801494046

SUPPORT

1шт.

13

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

D=12 mm

2шт.

14

5801376024

SENSOR

1шт.

15

5801567639

SENSOR

1шт.
