/ / / / / / / / (10.408.AC) - ENGINE, HEAT EXCHANGER

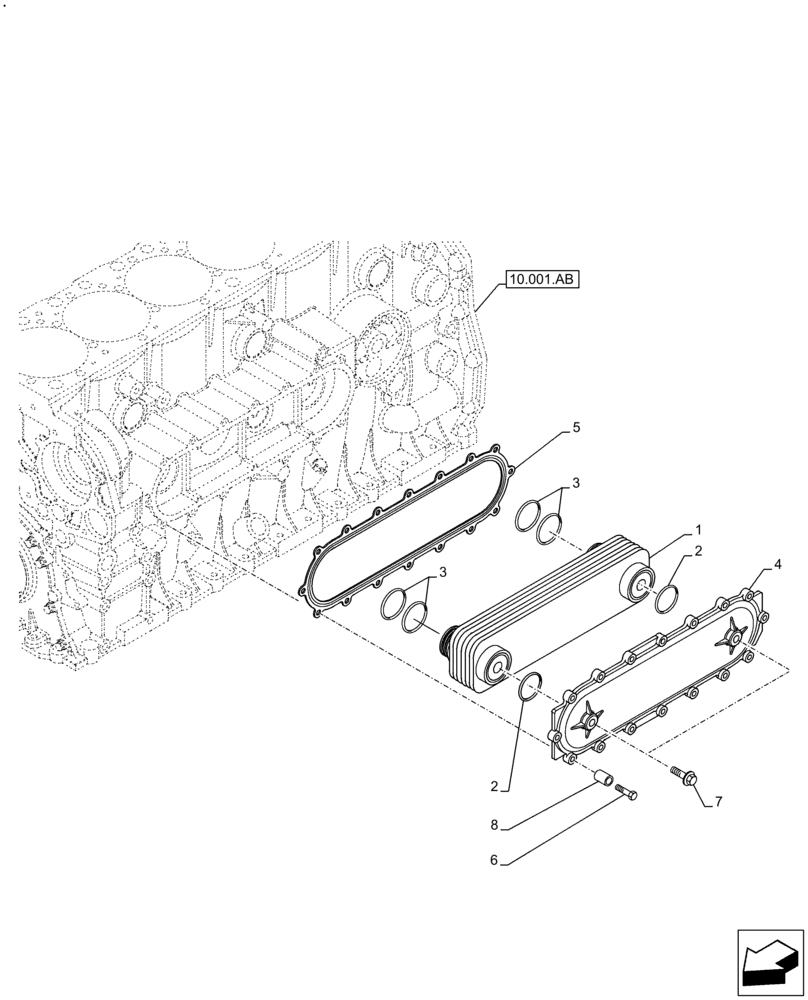

Запчасти Case IH F2CFE614B B006 (10.408.AC) - ENGINE, HEAT EXCHANGER (10) - ENGINE
2
4
8
1
5
2
3
7
3
10.001.ab
6
1
504127469
OIL COOLER
1шт.
2
17283481
O-RING
D=42.5 mm, SP=2.6 mm
2шт.
3
17289781
O-RING
D=47.22 mm, SP=3.55 mm
4шт.
4
504127468
COVER
1шт.
5
504128027
GASKET
1шт.
6
16674434
SCREW
M8 x 50 mm
16шт.
7
16588025
SCREW,M12 x 30mm
M12 x 30 mm
2шт.
8
17816414
SPACER
D=8.5 x 18 mm, SP=20 mm
16шт.
