(10.304.AC) - ENGINE OIL PUMP

Запчасти Case IH F2CFE614A B003 (10.304.AC) - ENGINE OIL PUMP (10) - ENGINE

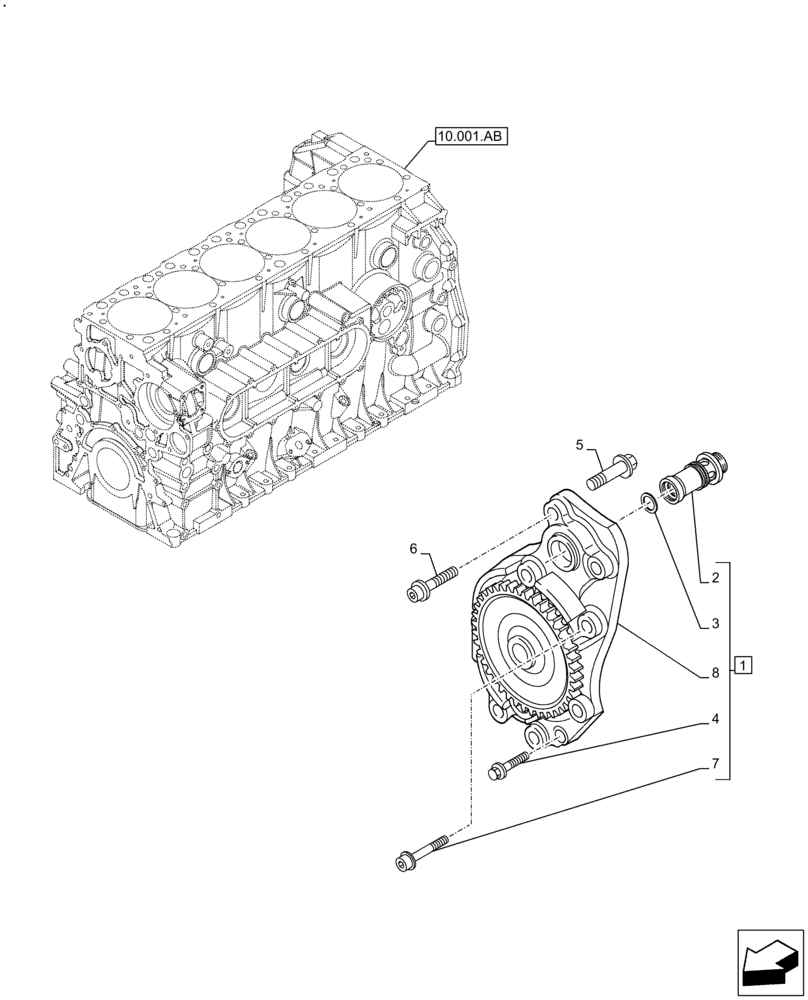

Схема запчастей Case IH F2CFE614A B003 - (10.304.AC) - ENGINE OIL PUMP (10) - ENGINE
8
7
5
3
4
6
2
1
10.001.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504131225

ENGINE OIL PUMP

ASSY, Incl 2 - 4, 7, 8

1шт.

2

500304389

SAFETY VALVE

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

D=21.8 mm, SP=2.6 mm

1шт.

4

16591725

SCREW,Hex, M6 x 40mm

M6 x 40 mm

1шт.

5

16585725

SCREW,Hex, M6 x 16mm, Cl 8.8

M6 x 16 mm

1шт.

6

500355363

SCREW

M8 x 1.25 x 60 mm

5шт.

7

504010370

BOLT

M8 x 1.25 x 45 mm

3шт.

8

NSS

NOT SOLD SEPARAT

Pump, Incl in 1

1шт.
