Запчасти Case IH F2CFE613T A019 (10.101.01) - CYLINDER HEAD (5801382527 - 504029659 - 5801379857) (10) - ENGINE

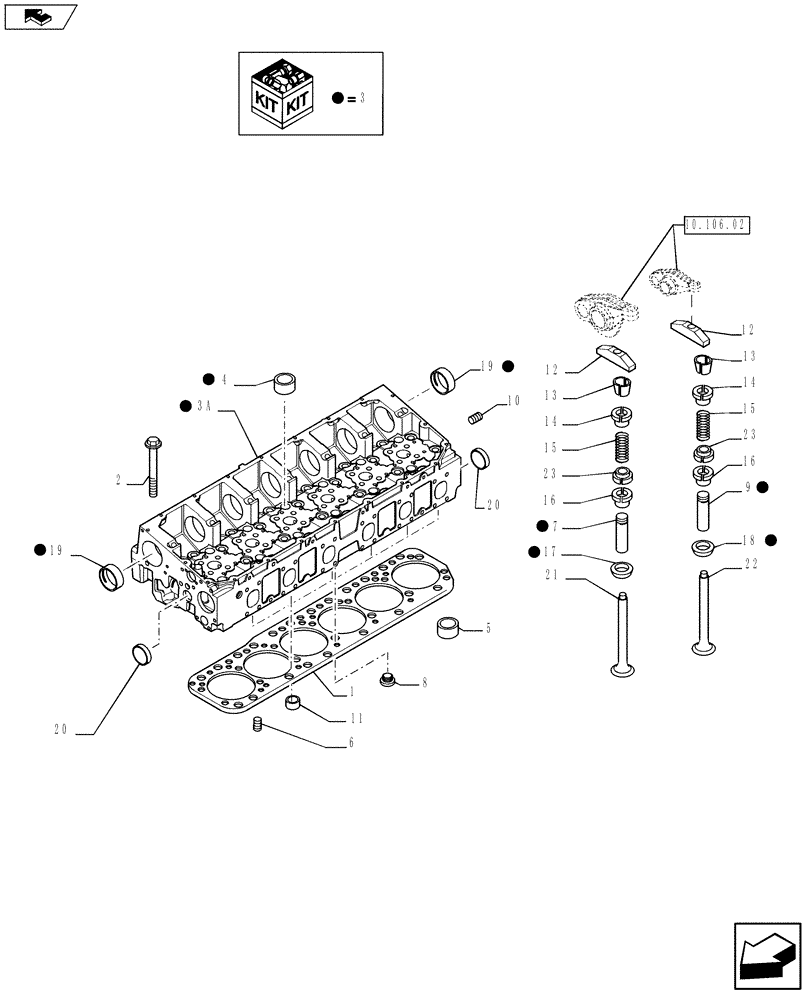

Схема запчастей Case IH F2CFE613T A019 - (10.101.01) - CYLINDER HEAD (5801382527 - 504029659 - 5801379857) (10) - ENGINE
15
17
home
10.106.02
7
13
3
3
20
3
19
6
5
23
9
1
3
16
3
4
13
22
2
19
3
23
14
18
20
3a
15
10
12
3
16
12
14
3
8
3
3
21
11

Артикул

Название

Примечание

Количество

1

504385500

CYLINDER HEAD GASKET

1шт.

2

500354580

BOLT

26шт.

3

5801382527

CYLINDER HEAD

Assy, Contains Ref. 3A, 4, 7, 9, 17- 19

1шт.

3

47497240R

REMAN-CYLINDER HEAD

With Exhaust Brake. Complete With Valves

1шт.

3

47497240C

CORE-CYLINDER HEAD

Return Number

1шт.

3

47915694R

REMAN-CYLINDER HEAD

Without Exhaust Brake. Complete With Valves

1шт.

3

47915694C

CORE-CYLINDER HEAD

Return Number

1шт.

3a

NSS

NOT SOLD SEPARAT

1шт.

4

504344694

PLUG,M25, Tapered

D = 25 mm

23шт.

5

16991370

PLUG

D = 45 mm

2шт.

6

500314967

DOWEL

D = 10 mm

2шт.

7

504361843

VALVE GUIDE

Std.

12шт.

7

504361844

VALVE GUIDE

+0.2

12шт.

7

504361845

VALVE GUIDE

+0.4

12шт.

8

16991170

PLUG

D = 36 mm

6шт.

9

504361838

VALVE GUIDE

Std.

12шт.

9

504361839

VALVE GUIDE

+0.2

12шт.

9

504361840

VALVE GUIDE

+0.4

12шт.

10

504051237

PLUG

D = 1/4"

2шт.

11

14282170

PLUG,M20, Tapered, Stainless

D = 20 mm

6шт.

12

504131444

BRIDGE

12шт.

13

98499819

ROCKER ARM COTTER

48шт.

14

504127797

SPRING CUP

24шт.

15

504125776

VALVE SPRING

24шт.

16

504366703

OIL SEAL

24шт.

17

504361850

VALVE SEAT

STD. INTAKE

12шт.

17

504361851

VALVE SEAT

+0,20 INTAKE

12шт.

18

504362737

VALVE SEAT

STD. EXHAUST

12шт.

18

504362736

VALVE SEAT

+0,20 EXHAUST

12шт.

19

504125778

BUSHING

7шт.

20

16990870

PLUG

D = 28 mm

5шт.

21

500354685

STD INLET VALVE

STD ENGINE INLET VALVE

12шт.

22

504368419

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

23

504129182

SPRING SEAT

24шт.

Выбрано товаров: 34
