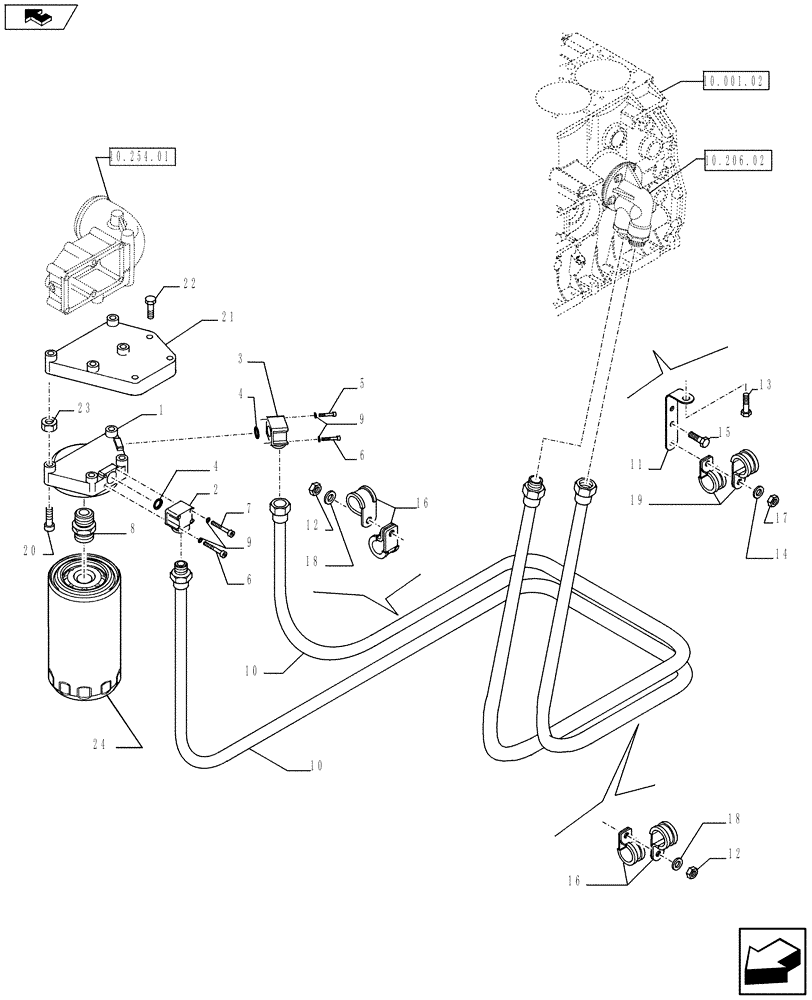

Запчасти Case IH F2CFE613T A019 (10.206.05) - ENGINE OIL FILTER & LUBE LINES (504389855 - 504093912) (10) - ENGINE

1

504218098

BRACKET

1шт.

2

504005572

ELBOW

1шт.

3

98481998

FITTING

1шт.

4

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

2шт.

5

16689724

SCREW,M6 x 45mm

M6 x 45

2шт.

6

16689824

SCREW,M6 x 50mm

M6 x 50

4шт.

7

16689924

SCREW

2шт.

8

99431947

HYD CONNECTOR

1шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

D = M6 x 12

8шт.

10

504218108

HYD TUBE

2шт.

11

500320255

BRACKET

1шт.

12

2852389

FLANGE NUT

3шт.

13

2852323

SCREW,M8 x 1.25 x 14mm

M8 x 1.25

1шт.

14

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

Support

1шт.

15

16585825

SCREW,M6 x 20mm

Hose

1шт.

16

17317390

CLAMP

6шт.

17

16750125

NUT

1шт.

18

10519624

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

19

17315790

CLAMP

2шт.

20

14308430

SCREW,Hex Soc Hd, M10 x 1.25 x 70, 10.9

3шт.

21

504388919

SUPPORT

1шт.

22

16692977

SCREW

1шт.

23

17044825

NUT,Hex, M10 x 1.25

1шт.

24

84346773

ENGINE OIL FILTER,110mm OD x 212mm L, M30 x 2

1шт.
