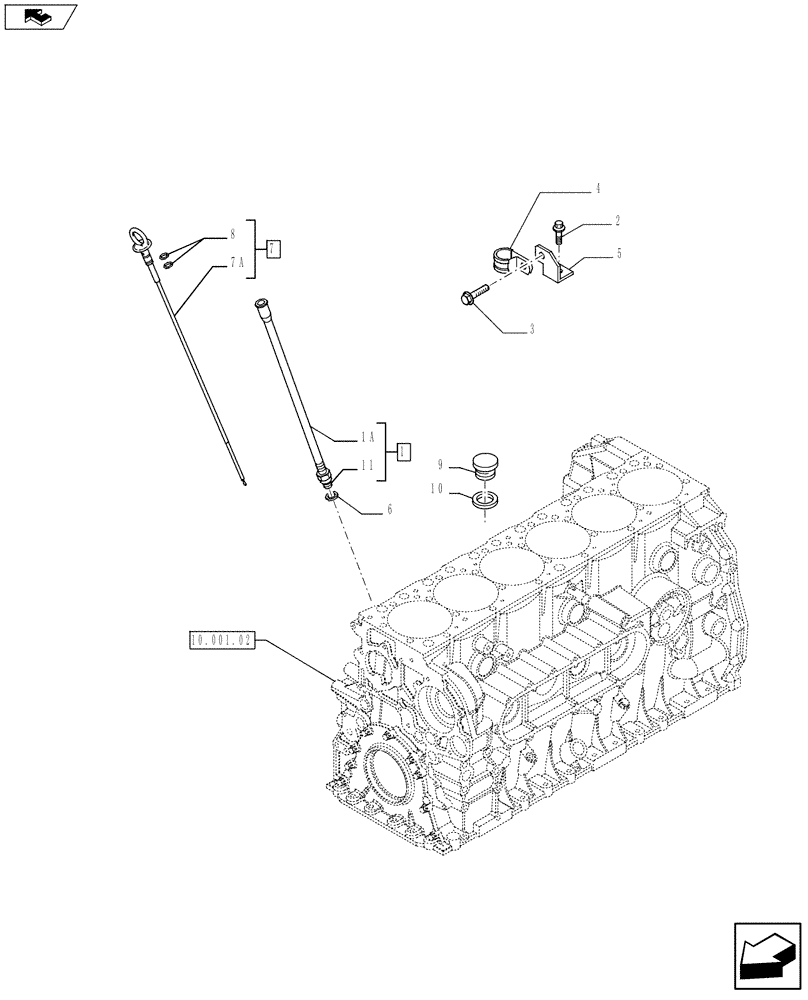

Запчасти Case IH F2CFE613S A020 (10.304.01[01]) - ENGINE OIL DIPSTICK (504279536-5801462723-504055391) (10) - ENGINE

1

504323917

TUBE

ASSY

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

16586225

BOLT,M8 x 16mm

1шт.

3

16707034

BOLT,Flng, M8 x 16mm

1шт.

4

17316699

CLAMP

1шт.

5

4791406

BRACKET

1шт.

6

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

1шт.

7

5801462723

DIPSTICK

ASSY

1шт.

7a

NSS

NOT SOLD SEPARAT

1шт.

8

504027969

SEALING RING

SEALRING

2шт.

9

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.

10

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.

11

504323023

UNION

1шт.
