(10.304.01[02]) - OIL PUMP - ENGINE (504133121)

Запчасти Case IH F2CFE613R A021 (10.304.01[02]) - OIL PUMP - ENGINE (504133121) (10) - ENGINE

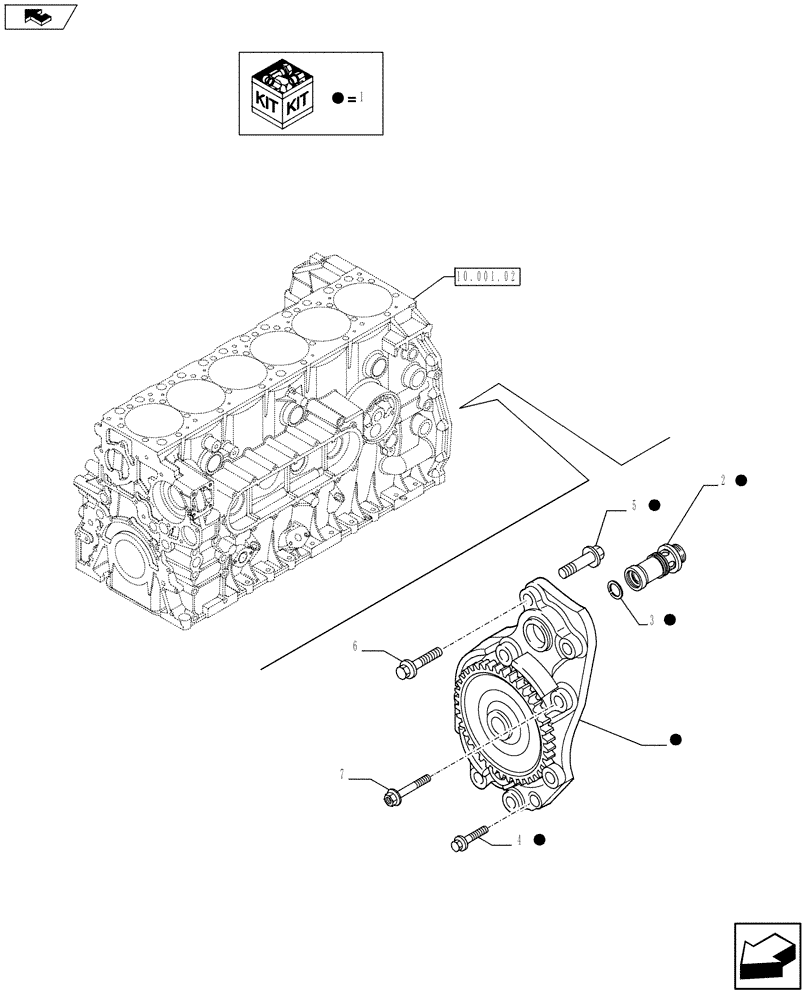

Схема запчастей Case IH F2CFE613R A021 - (10.304.01[02]) - OIL PUMP - ENGINE (504133121) (10) - ENGINE
6
1
home
5
3
4
1
1
1
2
1
10.001.02
1
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504131225

ENGINE OIL PUMP

1шт.

1

504131225R

REMAN-ENG OIL PUMP

1шт.

1

504131225C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

500304389

SAFETY VALVE

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

4

16591724

SCREW,M6 x 40mm

M6 x 40

1шт.

5

16585724

BOLT,M6 x 16mm, Cl 8.8

M6 x 16

1шт.

6

500355363

SCREW

5шт.

7

504010370

BOLT

3шт.

Выбрано товаров: 9
