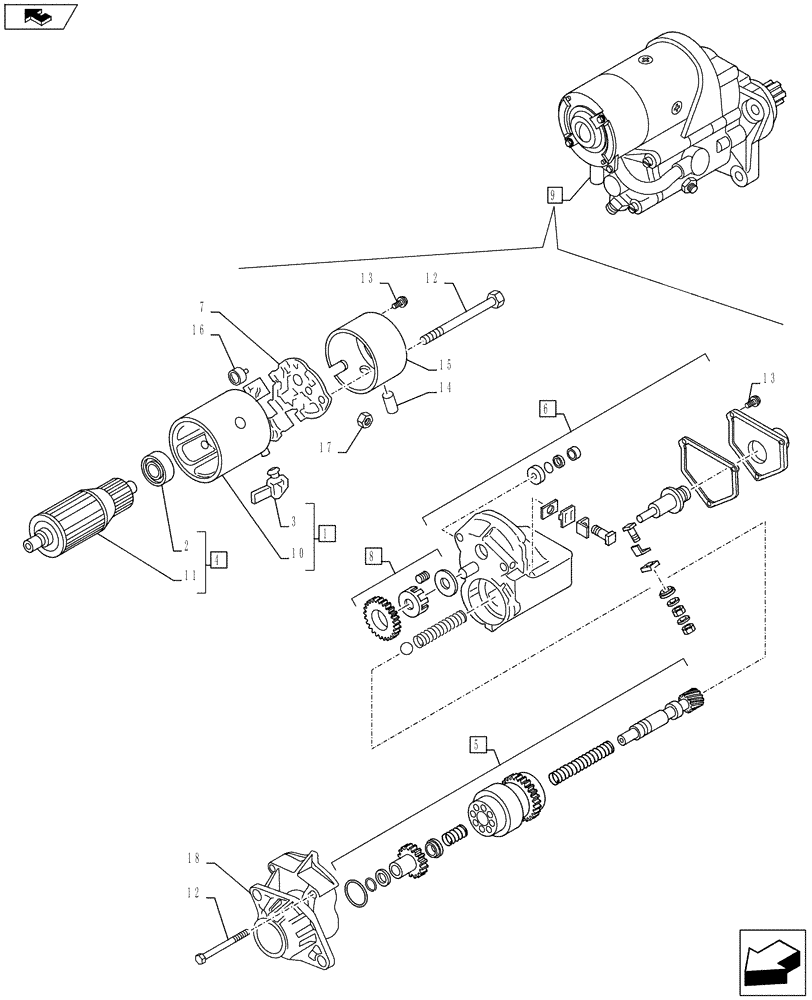

Запчасти Case IH F2CFE613L A022 (55.201.AE[02]) - STARTER MOTOR, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

42471365

STATOR

ASSY, Incl 3, 10

1шт.

2

42471382

KIT, STARTER MTR REP

1шт.

3

42471367

COVER

1шт.

4

42471368

ARMATURE

ASSY, Incl 2, 11

1шт.

5

42471369

KIT, STARTER MTR REP

1шт.

6

42471370

KIT, STARTER MTR REP

1шт.

7

8093758

BRUSH SET

1шт.

8

8093757

KIT, STARTER MTR REP

1шт.

9

99432760

STARTER MOTOR

ASSY, Incl 1, 2, 4, 5 - 8, 12 - 17

1шт.

10

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Armanture, Incl in 4

1шт.

12

NSS

NOT SOLD SEPARAT

Screw, Incl in 9

2шт.

13

NSS

NOT SOLD SEPARAT

Screw, Incl in 9

2шт.

14

NSS

NOT SOLD SEPARAT

Set srew, Incl in 9

1шт.

15

NSS

NOT SOLD SEPARAT

Housing, Incl in 9

1шт.

16

NSS

NOT SOLD SEPARAT

Bush, Incl in 9

1шт.

17

NSS

NOT SOLD SEPARAT

Nut, Incl in 9

1шт.

18

NSS

NOT SOLD SEPARAT

Body, Incl in 9

1шт.
