(55.015.AC) - ENGINE, SENSOR

Запчасти Case IH F2CFE613L A022 (55.015.AC) - ENGINE, SENSOR (55) - ELECTRICAL SYSTEMS

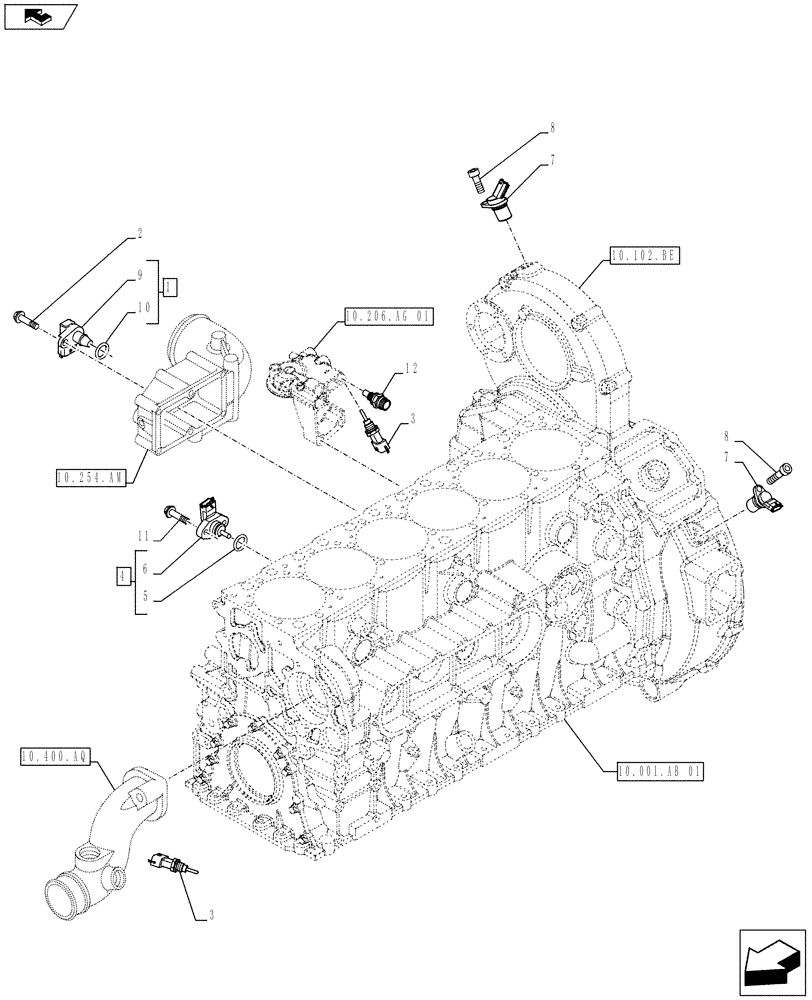

Схема запчастей Case IH F2CFE613L A022 - (55.015.AC) - ENGINE, SENSOR (55) - ELECTRICAL SYSTEMS
5
1
6
7
home
9
10.254.am
12
10
7
10.400.aq
2
10.001.ab 01
1
4
10.102.be
3
10.206.ag 01
8
3
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504372225

SENSOR,Temperature / Pressure

Air pressure and temperature; ASSY; Incl 9; 10

1шт.

2

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18 mm

1шт.

3

82017881

SENSOR

Pressure and temperature

2шт.

4

504358206

Oil pressure and temperature; ASSY; Incl 5; 6

SWITCH,Pressure

1шт.

5

4895477

O-RING,2.62mm Thk x 13.94mm ID

D=13.94mm; SP=2.62 mm

1шт.

6

NSS

NOT SOLD SEPARAT

Sensor; Incl in 4

1шт.

7

504096645

TRANSMITTER

2шт.

8

16589025

SCREW,M14 x 35mm

M14 x 35 mm

2шт.

9

NSS

NOT SOLD SEPARAT

Sensor; Incl in 1

1шт.

10

42546555

O-RING

1шт.

11

4899110

SCREW,Hex Flg, M6 x 1 x 20

M6 x 20 mm

2шт.

12

500346074

SENDER UNIT

Pressure

1шт.

Выбрано товаров: 12
