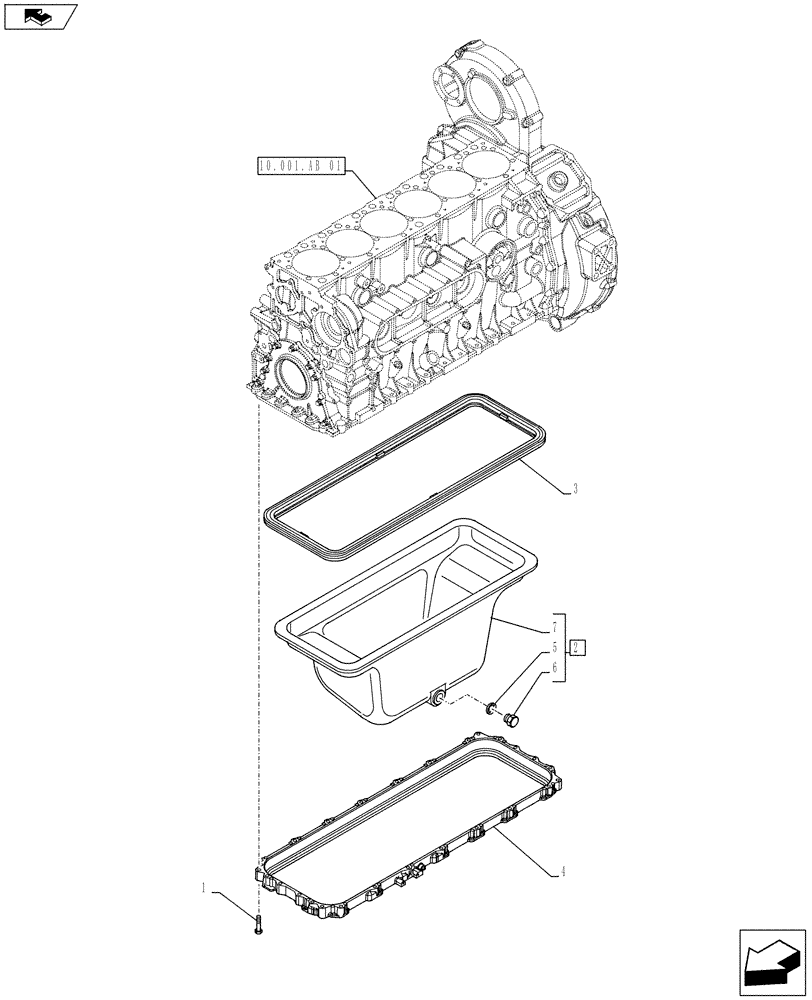

Запчасти Case IH F2CFE613L A022 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

16587525

BOLT,M10 x 45mm

M10 x 45 mm

26шт.

2

504143834

ENGINE OIL PAN

ASSY; Incl 5 - 7

1шт.

3

504346309

GASKET

1шт.

4

504143828

SPACER

1шт.

5

16508460

SEAL

D= 22 x 27 mm; SP=1.5 mm

1шт.

6

10305171

PLUG,M22 x 1.5 x 21

M22 x 1.5 mm

1шт.

7

NSS

NOT SOLD SEPARAT

Oil tank; Incl in 2

1шт.
