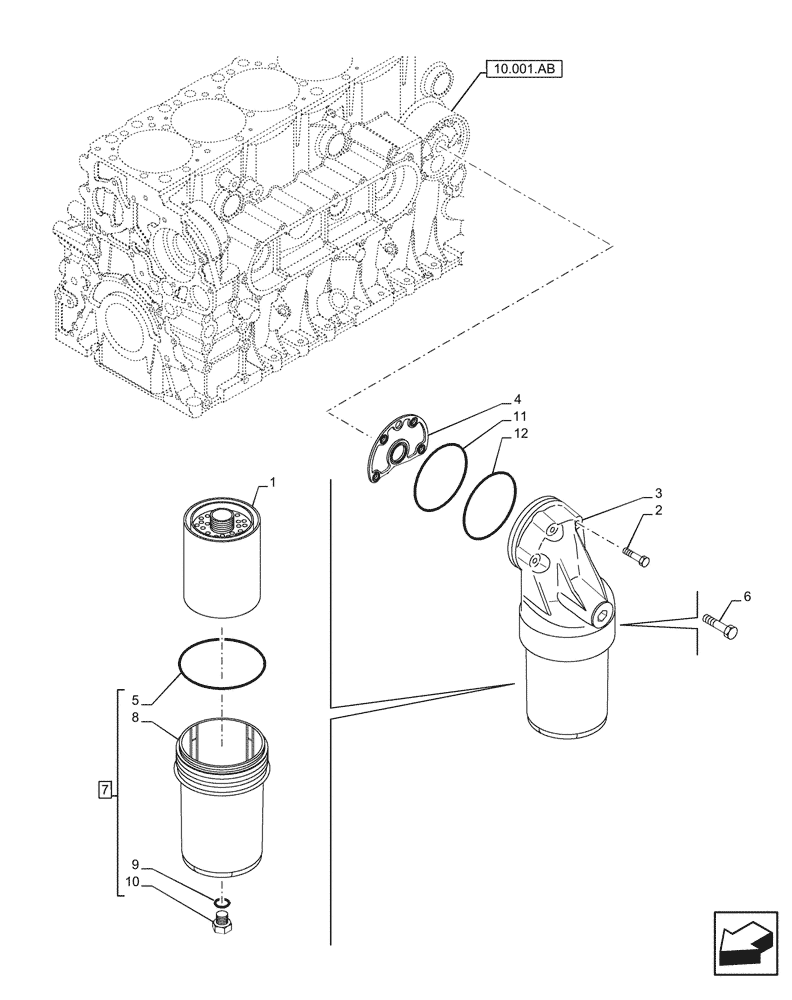

/ / / / / / / / (10.304.AE) - ENGINE OIL FILTER
Запчасти Case IH F2CFE613J B047 (10.304.AE) - ENGINE OIL FILTER (10) - ENGINE
10.001.ab
9
12
2
4
3
7
6
11
10
1
5
8
1
NS
NOT SERVICED
Engine oil filter
1шт.
2
16592325
BOLT,M8 x 60mm
1шт.
3
504127254
FILTER ASSY
1шт.
4
504147366
GASKET
1шт.
5
NSS
NOT SOLD SEPARAT
O-ring, Incl in 7
1шт.
6
16598224
SCREW,Hex, M8 x 90mm
1шт.
7
8097845
COVER
ASSY, Incl 5, 8, 9, 10
1шт.
8
NSS
NOT SOLD SEPARAT
Filter bowl, Incl in 7
1шт.
9
NSS
NOT SOLD SEPARAT
O-ring, Incl in 7
1шт.
10
NSS
NOT SOLD SEPARAT
Plug, Incl in 7
1шт.
11
17291881
GASKET
M113.89 x 3.53
1шт.
12
42559552
O-RING
1шт.
