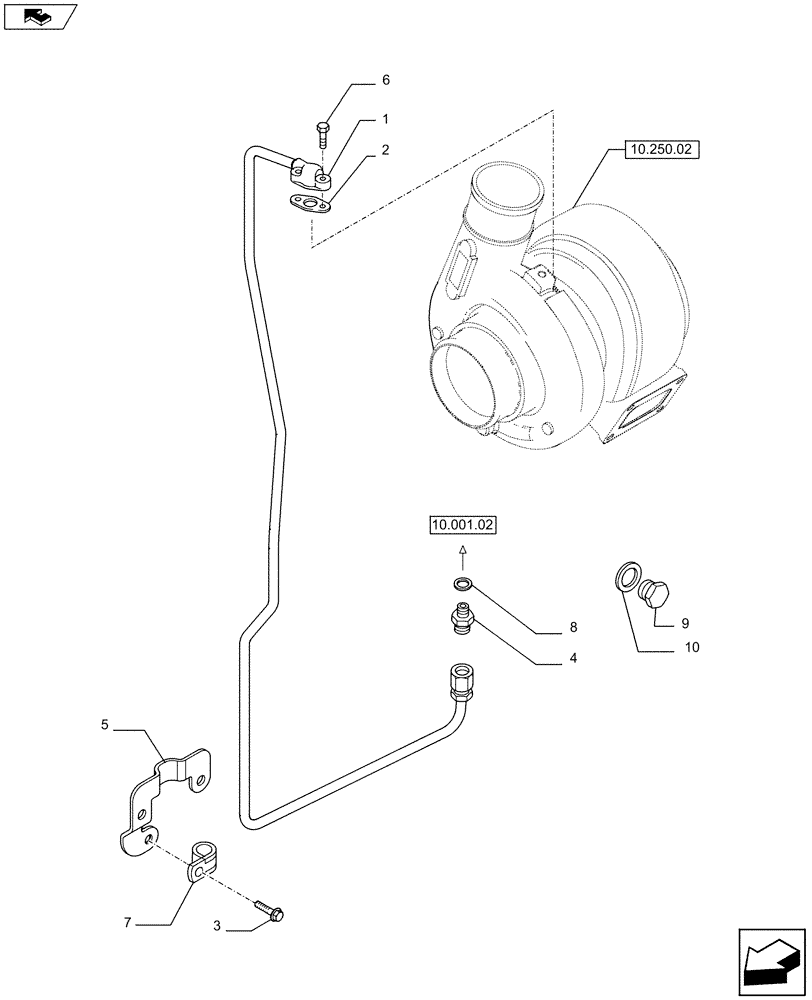

Запчасти Case IH F2CFE613J A011 (10.304.03[02]) - OIL PUMP PIPING (5801372649)

1

5801372655

SUCTION PIPE

1шт.

2

504331011

GASKET

1шт.

3

16585625

SCREW,Hex, M6 x 12mm

M6 x 12

1шт.

4

504081274

HYD CONNECTOR

1шт.

5

504384976

FITTING

1шт.

6

16586625

BOLT,M8 x 35mm

M8 x 35

2шт.

7

10441390

COLLAR,12mm, Coat, 7mm Bolt Hole, P Type

1шт.

8

2852802

SEALING WASHER

1шт.

9

10300714

PLUG,M16 x 1.5 x 14

1шт.

10

99489019

SEALING WASHER

1шт.
