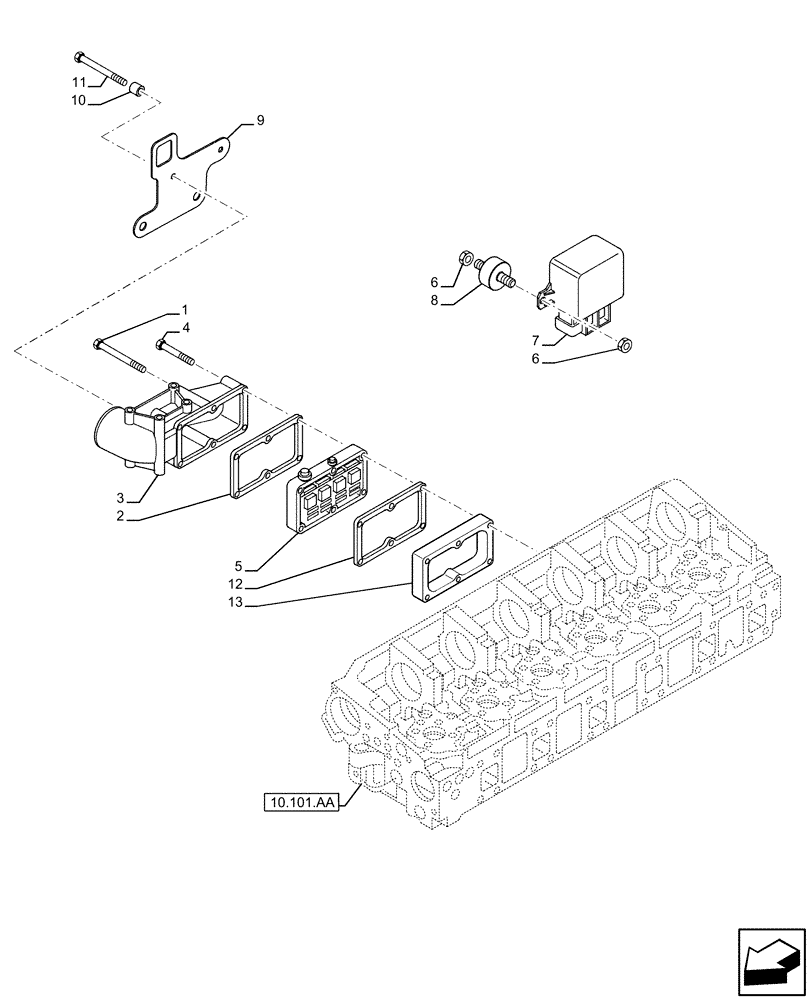

Запчасти Case IH F2CFE613F B041 (10.254.AM) - INLET MANIFOLD (10) - ENGINE

1

16599125

BOLT,Hex, M10 x 130mm, Cl 8.8

3шт.

2

504375264

GASKET,0.3mm Thk

1шт.

3

5801603834

MANIFOLD

AIR INTAKE TUBE

1шт.

4

16593125

BOLT,M10 x 100mm

1шт.

5

NS

NOT SERVICED

Heater

1шт.

6

NS

NOT SERVICED

Nut

4шт.

7

NS

NOT SERVICED

Relay 12V, 150A

1шт.

8

NS

NOT SERVICED

Lug Rubber

2шт.

9

5801764051

FASTENER

BRACKET

1шт.

10

504077078

SPACER

2шт.

11

16599325

SCREW,M10 x 150mm

M10x150 mm

2шт.

12

504026624

GASKET

1шт.

13

500324439

SPACER

1шт.
