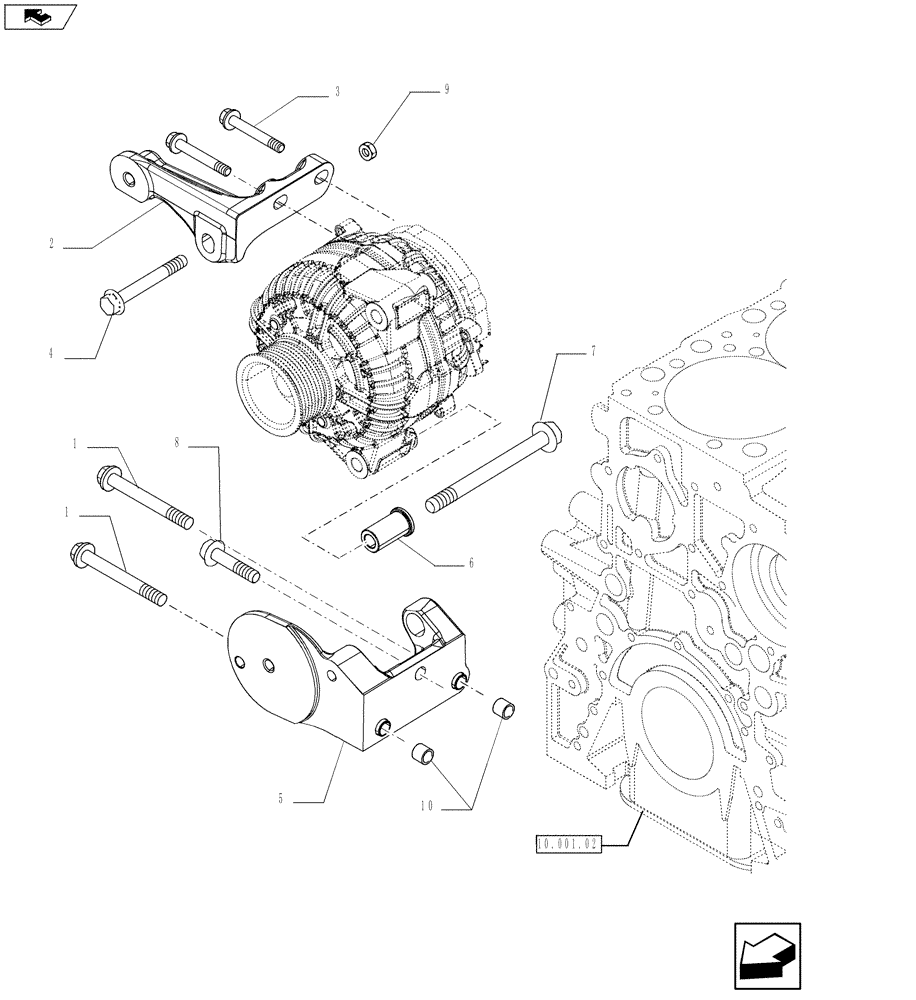

Запчасти Case IH F2CFE613F A011 (55.301.01) - ENGINE, ALTERNATOR MOUNTING (504383238) (55) - ELECTRICAL SYSTEMS

1

16587525

BOLT,M10 x 45mm

M10 x 45

2шт.

2

504290062

BRACKET, SUPPORTING

1шт.

3

16586425

BOLT,M8 x 25mm

M12 x 100

2шт.

4

16587125

SCREW,M10

M8 x 25

1шт.

5

504290061

BRACKET, SUPPORTING

1шт.

6

99484032

BUSHING

1шт.

7

16598925

SCREW,Hex, M10 x 110mm, Cl 8.8

M10 x 110

1шт.

8

16592925

SCREW,M10 x 1.5 x 80mm

1шт.

9

17038125

FLANGE

1шт.

10

98405462

DOWEL

2шт.
