(10.103.04[01]) - DAMPER - PULLEY (504220573 - 504363515 - 504323018)

Запчасти Case IH F2CFE613F A011 (10.103.04[01]) - DAMPER - PULLEY (504220573 - 504363515 - 504323018) (10) - ENGINE

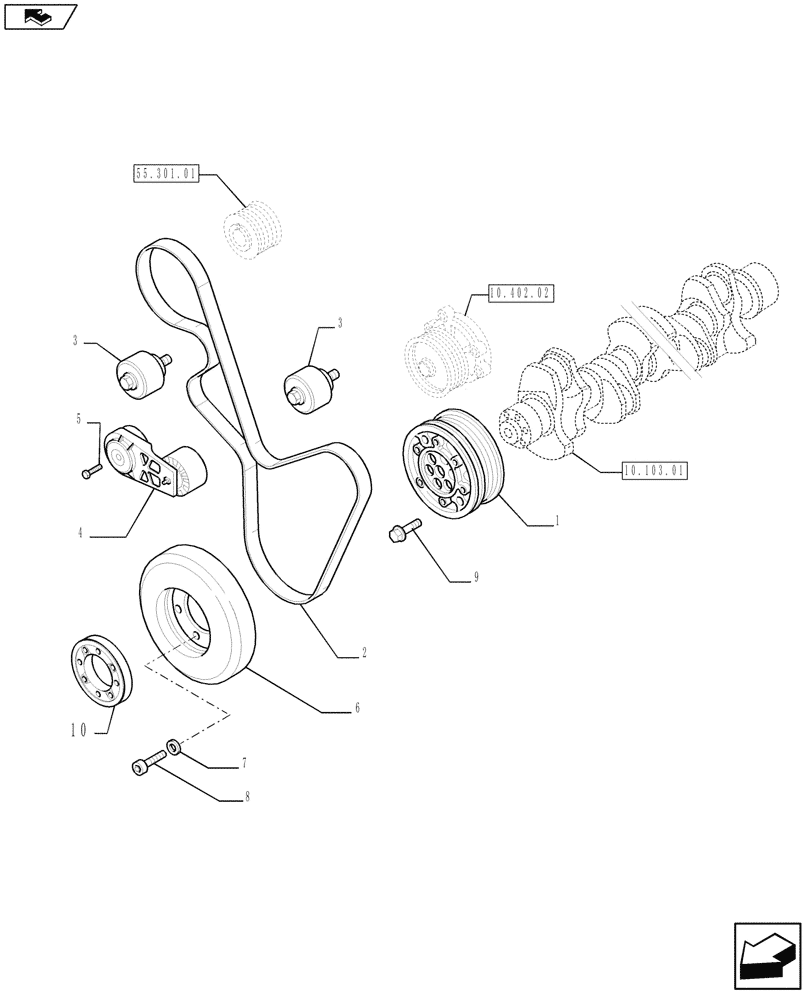

Схема запчастей Case IH F2CFE613F A011 - (10.103.04[01]) - DAMPER - PULLEY (504220573 - 504363515 - 504323018) (10) - ENGINE
55.301.01
8
5
3
9
6
4
10
home
1
3
2
7
10.103.01
10.402.02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504368729

PULLEY

1шт.

2

84373502

BELT

2044mm 8-rib Poly-V; Main, A/C Compressor, Alternator, Serial Range: ZDRD04375

1шт.

Refer to Tractor Catalog for Serial Number Break

1шт.

2

47430047

BELT

2076mm 8-rib Poly-V; Main, A/C Compressor, Alternator, Serial Range: ZDRD04376

1шт.

Refer to Tractor Catalog for Serial Number Break

1шт.

3

504356836

IDLER

2шт.

4

504315786

BELT TENSIONER

1шт.

5

16592925

SCREW,M10 x 1.5 x 80mm

1шт.

6

504216224

DAMPER

1шт.

7

17095224

WASHER

M12 x 30

6шт.

8

500356764

SCREW

6шт.

9

500354585

BOLT

6шт.

10

5801459512

SPACER

1шт.
